Colour Contamination Between Multi-Colour Filaments
Increase purge only where needed, use suitable transition order, clean the nozzle, and separate heavily contrasting or translucent materials with a tuned purge.
Increase purge only where needed, use suitable transition order, clean the nozzle, and separate heavily contrasting or translucent materials with a tuned purge tower or sacrificial object.
See the sequence before you start
Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.
Start fast or open every detail
Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.
Quick Fix mode is active.
Old melt remains in the nozzle and hot zone.
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
Use the smallest useful test, keep the winning change, and record the result.
Make this guide easier to apply to your setup
Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.
Choose any setup details above to emphasize matching notes and produce a safer starting summary.
Know what to do now—and what comes next
Follow one controlled path. Do not stack unrelated changes before the proof test.
- 1Confirm the visual clue
Compare the failed area with the problem and target visuals.
- 2Run the safest first checks
Run the first safe check and change one variable at a time.
- 3Print the proof test
A small representative test no longer shows the original symptom.
- 4Escalate only if needed
Use the next-route guides only when the original symptom remains.
Which description is closest to what you see?
Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.
Old melt remains in the nozzle and hot zone.
Before you change settings
- Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
- Photograph the failure before removing the print so the evidence is not lost.
- Return extreme overrides to a known profile and change one variable at a time.
- Use a small calibration object or representative section before repeating a long print.
Recognize it, check safely, prove the fix
Use this map before changing multiple settings. The detailed procedure and source references follow below.
Fastest safe order
- Confirm the nozzle and hotend are clean and suitable for the materials.
- Print a transition test for the actual colour pairs.
- Increase purge volume only for the worst transitions.
- Use a purge tower, purge object, or infill purge where supported.
Stop immediately for
- Stay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers.
- Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.
Proof of success
The original symptom no longer appears during a representative calibration or short test print.

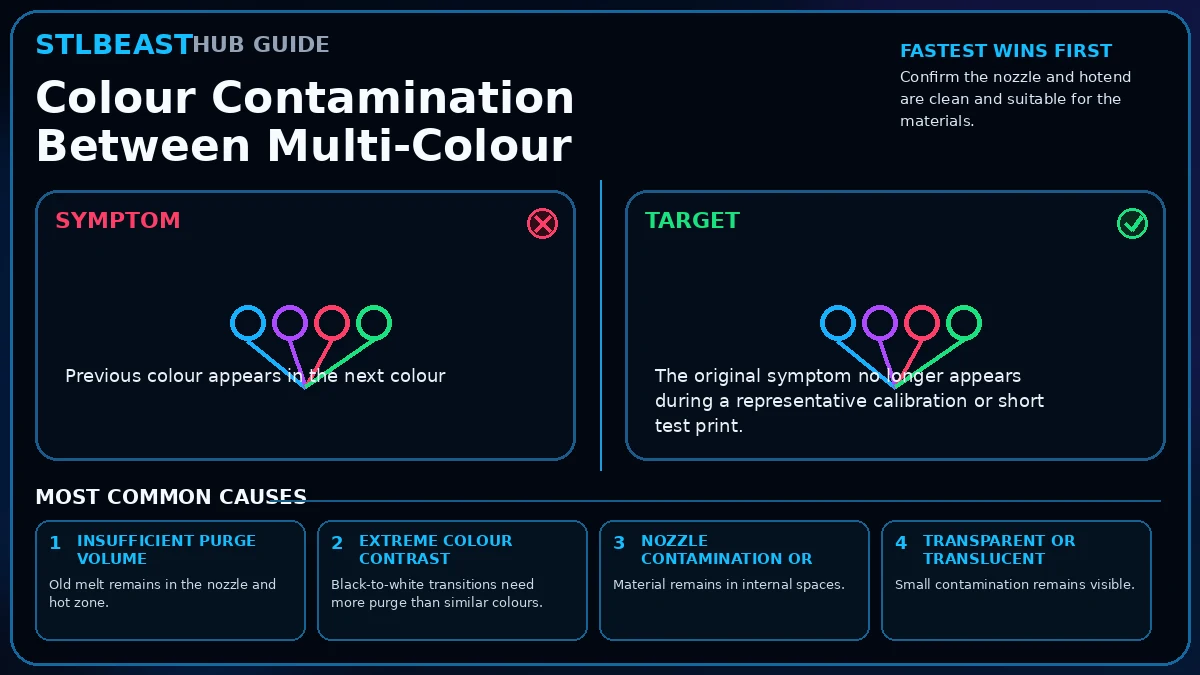

What it looks like
- Previous colour appears in the next colour
- Light colours look dirty after dark filament
- Contamination fades gradually across several lines
- Colour changes are clean at first but worsen later
Most likely causes
- Insufficient purge volumeOld melt remains in the nozzle and hot zone.
- Extreme colour contrastBlack-to-white transitions need more purge than similar colours.
- Nozzle contamination or dead volumeMaterial remains in internal spaces.
- Transparent or translucent filamentSmall contamination remains visible.
- Temperature mismatchDifferent materials do not transition cleanly.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.
- Step 1Confirm the nozzle and hotend are clean and suitable for the materials.
- Step 2Print a transition test for the actual colour pairs.
- Step 3Increase purge volume only for the worst transitions.
- Step 4Use a purge tower, purge object, or infill purge where supported.
- Step 5Sequence colours from light to dark when design allows.
- Step 6Avoid mixing materially incompatible filaments in one hotend.
- Step 7Reduce excessive temperature that increases oozing and mixing.
- Step 8Verify the final object has no contamination in critical visible areas.
Settings to review
| Setting | How to use it |
|---|---|
| Purge volume matrix | Tune by colour pair rather than one global extreme value. |
| Purge into infill | Use only when hidden contamination is acceptable. |
| Wipe tower stability | Ensure enough size and cooling for repeated changes. |
Material notes
Usually easiest when temperatures are similar.
May need more wipe and string control.
Requires compatibility with the model material and nozzle temperature.
Shows contamination more readily.
Printer context
Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.
Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.
Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.
Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.
Where to look in the slicer
Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.
Print, Filament and Printer Settings; inspect the layer preview before export.
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.
Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.
Controlled test method
Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.
- Save the current profile or photograph every relevant setting.
- Choose one suspected cause from the ranked list and change only the matching variable.
- Print the smallest useful test with the same material, nozzle, plate, and environment.
- Compare the result with the target visual, keep the winning change, and then test the real model.
Confirm the repair before repeating the full print
Use the same printer, material, slicer and key settings as the failed model.
The original symptom is absent and the target feature is repeatable.
The symptom remains in the same location or stage.
Return to the ranked causes and test the next single variable.
Recheck the visual diagnosis →

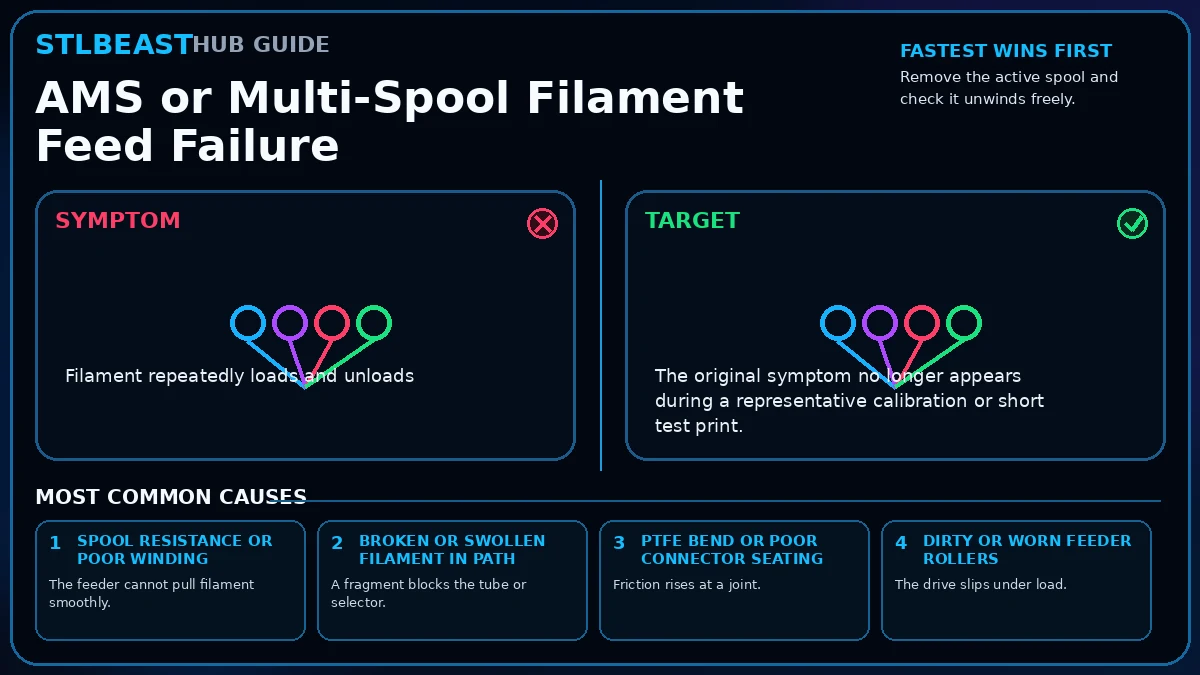

Next path 1AMS or Multi-Spool Filament Feed FailureOpen this related Multi-Material guide when the first repair path does not fully explain the remaining symptom.
Open this guide →

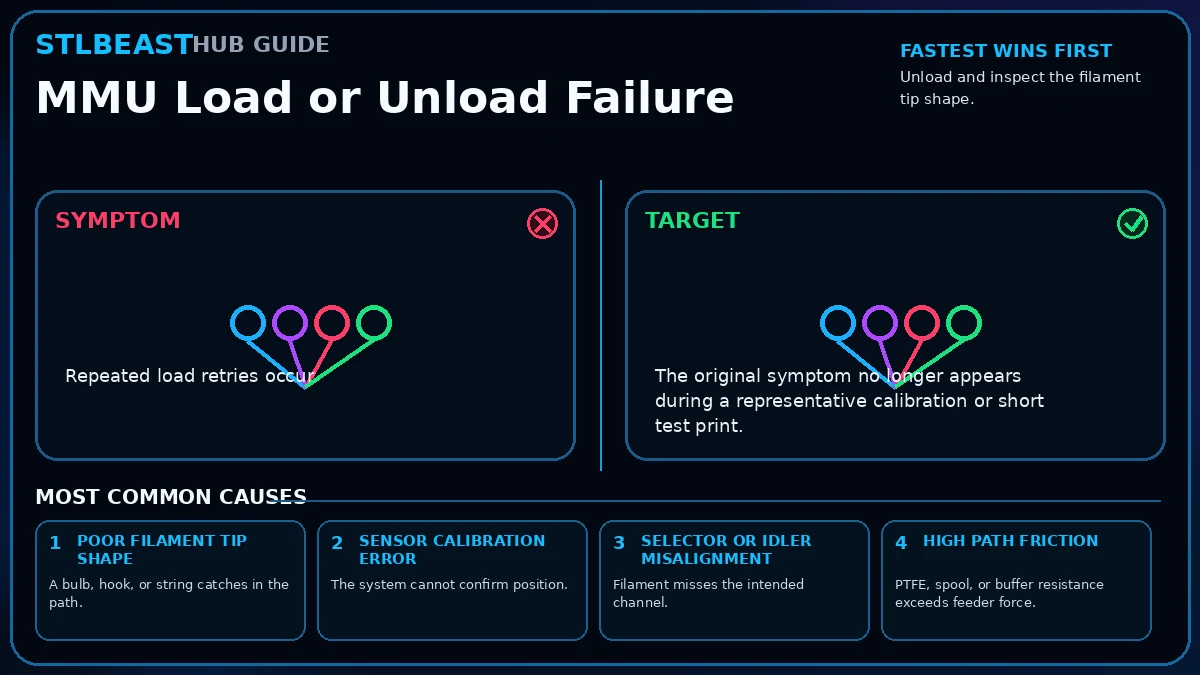

Next path 2MMU Load or Unload FailureOpen this related Multi-Material guide when the first repair path does not fully explain the remaining symptom.
Open this guide →

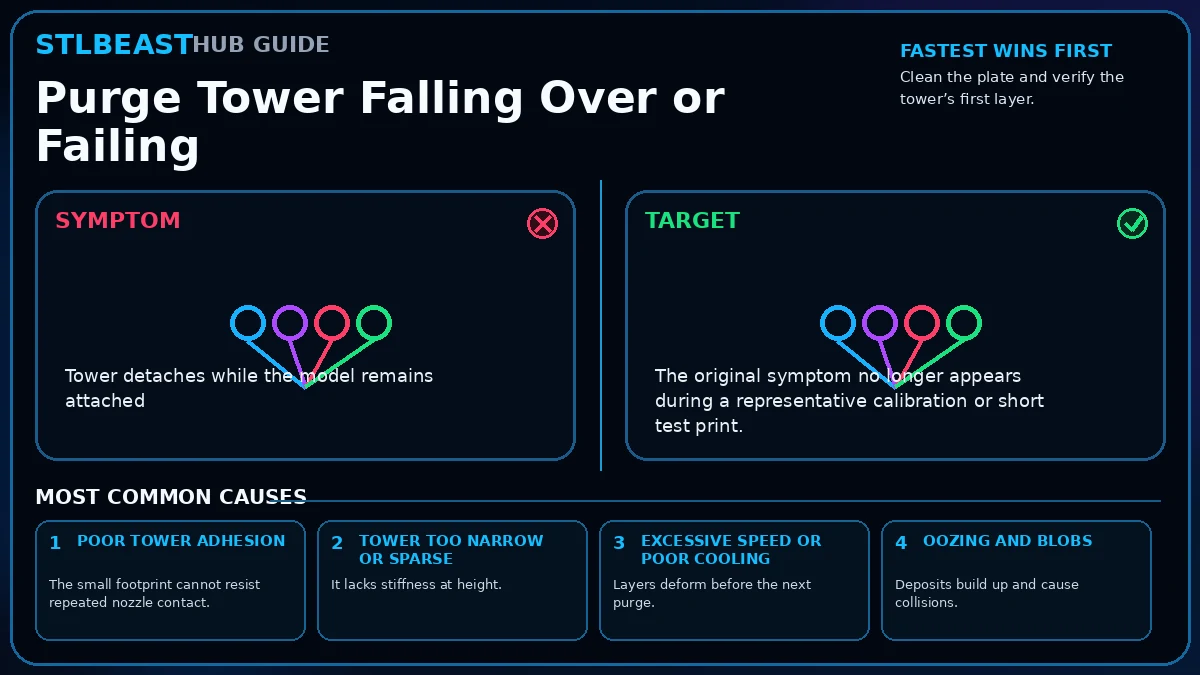

Next path 3Purge Tower Falling Over or FailingOpen this related Multi-Material guide when the first repair path does not fully explain the remaining symptom.
Open this guide →How to verify the fix
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
- No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
- The successful change is recorded with printer, material, slicer, nozzle or resin, and date.
Choose a result after the print so the guide can point you to the correct next action.
Prevent it next time
- Keep a known-good baseline profile and duplicate it before experimenting.
- Inspect the relevant hardware, feed path, surface, or material condition during routine maintenance.
- Change one variable at a time and use short calibration prints before repeating a long job.
- Recheck the setup after nozzle, hotend, plate, firmware, slicer, material, or major maintenance changes.
Useful public sample. Complete personalized profile for members.
Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.
Frequently asked questions
What should I check first for colour contamination between multi-colour filaments?
Start with the first repair step and the highest-ranked cause: insufficient purge volume. It is the fastest low-risk way to separate the main failure from unrelated settings.
Can slicer settings alone cause multi color cross contamination?
Sometimes, but mechanical, electrical, material, and file conditions must be ruled out before using extreme slicer values as a workaround.
Should I change several settings at once?
No. Multiple simultaneous changes hide the real cause and make the successful setup difficult to reproduce.
When should I stop and seek qualified service?
Stop for heater errors, smoke, electrical damage, severe binding, liquid or resin inside electronics, damaged mains wiring, uncontrolled motion, or any condition outside the manufacturer safety procedure.
