PETG Settings Guide

Tune PETG adhesion, stringing, temperature, cooling, flow, and supports for clean strong prints.

Fast answer

Use a dry spool, less first-layer squish than PLA, conservative retraction, and the lowest temperature that still gives strong bonding.

Start AI Doctor sample Preview printer settings Search all fixes

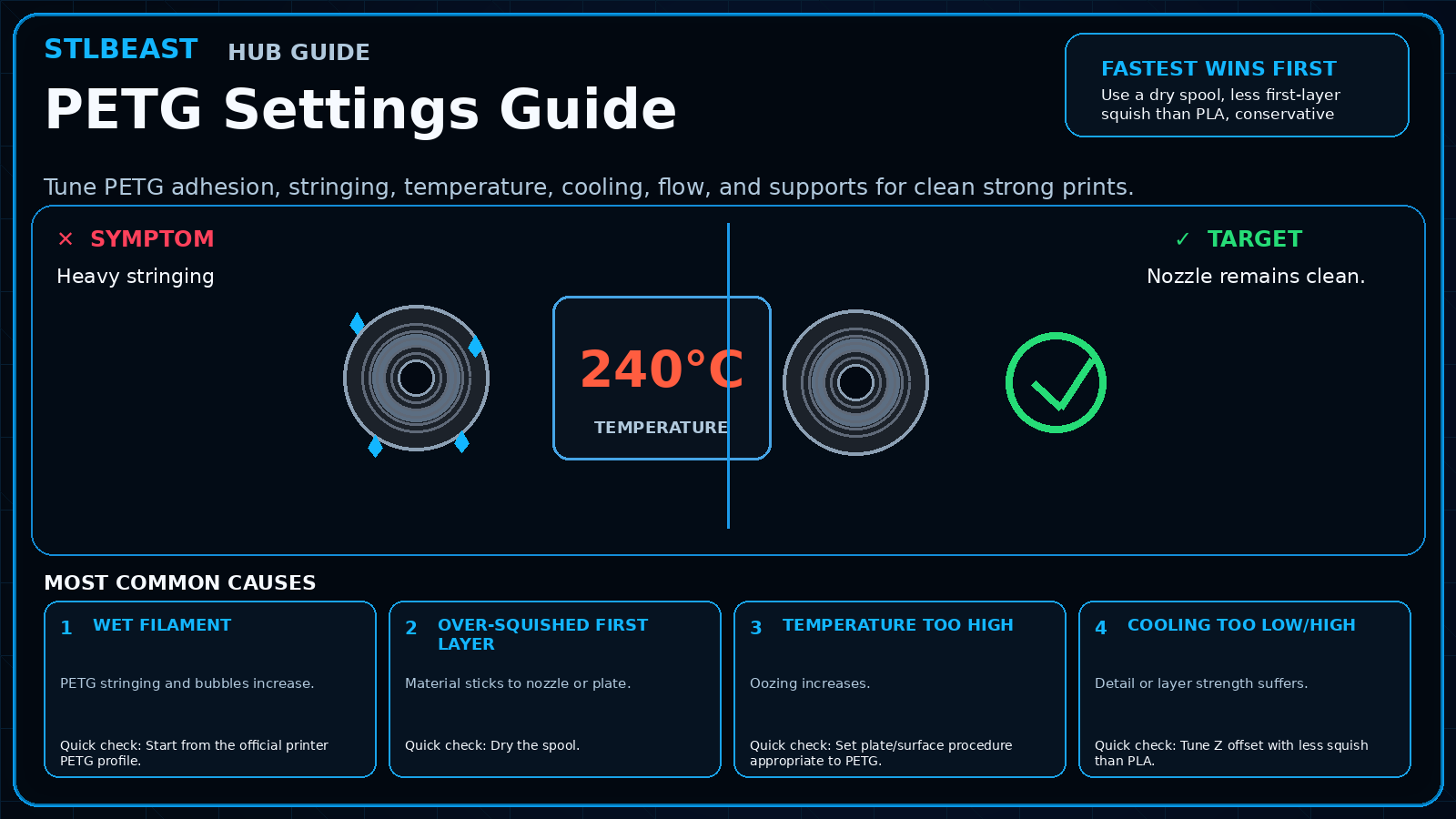

Visual comparison for petg settings guide — Use the visual comparison first, then follow the ordered checks below.

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Photograph the failure before removing the print so the evidence is not lost.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative model section before repeating a long print.

What it looks like

Heavy stringing
Nozzle buildup and blobs
Too-strong bed adhesion
Rough surfaces or weak details

Most likely causes

Wet filamentPETG stringing and bubbles increase.
Over-squished first layerMaterial sticks to nozzle or plate.
Temperature too highOozing increases.
Cooling too low/highDetail or layer strength suffers.

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test, and record the successful setup.

Start from the official printer PETG profile.
Dry the spool.
Set plate/surface procedure appropriate to PETG.
Tune Z offset with less squish than PLA.
Run temperature and flow tests.
Tune conservative retraction.
Tune cooling for bridges/detail without weakening layers.

Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Fast decision path

1If you see evidence of wet filament

PETG stringing and bubbles increase. Confirm it with the smallest safe test before continuing.

2If you see evidence of over-squished first layer

Material sticks to nozzle or plate. Confirm it with the smallest safe test before continuing.

3If you see evidence of temperature too high

Oozing increases. Confirm it with the smallest safe test before continuing.

Settings to review

Setting	How to use it
Temperature	Tune within spool range.
Fan	Moderate, material-dependent.
Retraction	Avoid extreme values.
First layer	Protect highly adhesive surfaces with the recommended release method.

Material notes

CF/GF PETG

Use abrasion-resistant nozzle and suitable size.

High-speed PETG

Requires hotend capacity and dry material.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, eccentric wheels, and first-layer consistency across the plate.

CoreXY

Start from the official machine profile; inspect belt balance, input shaping, flow, pressure advance, and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability, and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure, and personal-protection procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Process → Quality, Strength, Speed, Support and Filament settings; use calibration tools for temperature, flow and pressure advance.

PrusaSlicer

Print Settings, Filament Settings and Printer Settings; inspect the sliced preview and layer slider before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Build Plate Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft and hollow/drain settings.

How to verify the fix

Nozzle remains clean.
Stringing is minimal.
Layers are strong.
Part releases without plate damage.

Prevent it next time

Dry storage.
Clean nozzle exterior.
Save plate-specific profile.
Avoid copying PLA retraction blindly.
