Motion & MechanicsAdvanced16 minReviewed 2026

Stepper Motor Buzzing but Axis Does Not Move

Power down, remove mechanical load, inspect belts, lead screws, connectors, motor wiring, driver current, and axis binding before commanding more movement.

Fast answer

Power down, remove mechanical load, inspect belts, lead screws, connectors, motor wiring, driver current, and axis binding before commanding more movement.

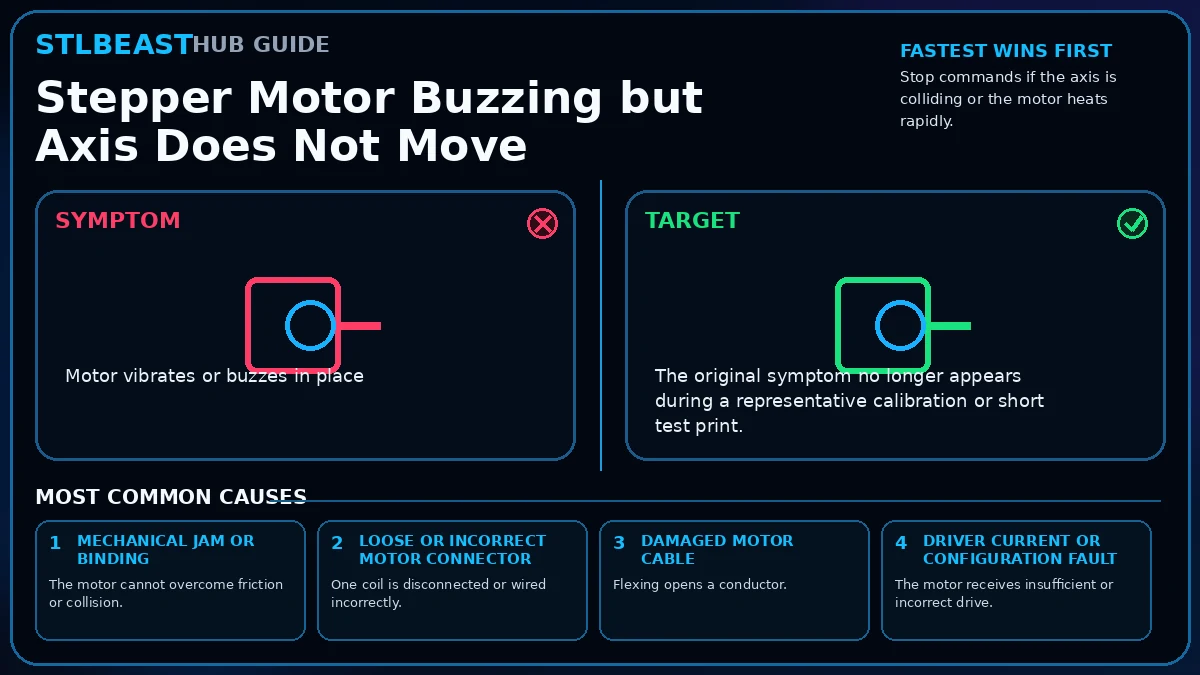

Visual diagnosis for stepper motor buzzing but axis does not move — Compare the symptom and target, then follow the ranked checks.

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Photograph the failure before removing the print so the evidence is not lost.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative section before repeating a long print.

What it looks like

Motor vibrates or buzzes in place
Axis moves only in one direction
Motor becomes hot while the axis remains still
Movement returns when the connector is reseated

Most likely causes

Mechanical jam or bindingThe motor cannot overcome friction or collision.
Loose or incorrect motor connectorOne coil is disconnected or wired incorrectly.
Damaged motor cableFlexing opens a conductor.
Driver current or configuration faultThe motor receives insufficient or incorrect drive.
Failed motor or stepper driverElectrical damage prevents normal phase control.

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.

Stop commands if the axis is colliding or the motor heats rapidly.
Power off before plugging or unplugging a stepper motor.
Move the axis by hand according to the manufacturer procedure and check for binding.
Inspect belts, pulleys, lead screws, couplers, wheels, rails, and endstops.
Reseat the motor and mainboard connectors with power disconnected.
Check the cable through its entire moving path.
Return custom current, microstep, and acceleration values to a known profile.
Use manufacturer diagnostics or qualified service to separate motor and driver faults.

Safety and accuracyStay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers. Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.

Settings to review

Setting	How to use it
Motor current	Use only the approved value for the motor and driver.
Acceleration	Extreme values can cause stalls but do not explain a stationary motor at low speed.
Microsteps	Must match firmware and driver configuration.

Material notes

All materials

This is a motion-system fault.

Z axes

Check lead-screw alignment and coupler installation.

CoreXY

A single motor or belt fault can produce diagonal or locked movement.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.

CoreXY

Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.

PrusaSlicer

Print, Filament and Printer Settings; inspect the layer preview before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.

How to verify the fix

The original symptom no longer appears during a representative calibration or short test print.
Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
The successful change is recorded with printer, material, slicer, nozzle or resin, and date.

Prevent it next time

Keep a known-good baseline profile and duplicate it before experimenting.
Inspect the relevant hardware, feed path, surface, or material condition during routine maintenance.
Change one variable at a time and use short calibration prints before repeating a long job.
Recheck the setup after nozzle, hotend, plate, firmware, slicer, material, or major maintenance changes.

Printer Settings

Useful public sample. Complete personalized profile for members.

Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.

Motor currentUse only the approved value for the motor and driver.

AccelerationExtreme values can cause stalls but do not explain a stationary motor at low speed.

Try settings sample Compare membership

Frequently asked questions

What should I check first for stepper motor buzzing but axis does not move?

Start with the first repair step and the highest-ranked cause: mechanical jam or binding. It is the fastest low-risk way to separate the main failure from unrelated settings.

Can slicer settings alone cause stepper motor buzzing not moving?

Sometimes, but mechanical, electrical, material, and file conditions must be ruled out before using extreme slicer values as a workaround.

Should I change several settings at once?

No. Multiple simultaneous changes hide the real cause and make the successful setup difficult to reproduce.

When should I stop and seek qualified service?

Stop for heater errors, smoke, electrical damage, severe binding, liquid or resin inside electronics, damaged mains wiring, uncontrolled motion, or any condition outside the manufacturer safety procedure.
