Heat-Set Inserts for 3D Printed Parts
Design the correct pilot hole and surrounding wall, use a temperature-controlled insertion tool, press straight without force, stop at depth, and let the joint.
Design the correct pilot hole and surrounding wall, use a temperature-controlled insertion tool, press straight without force, stop at depth, and let the joint cool before loading.
See the sequence before you start
Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.
Start fast or open every detail
Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.
Quick Fix mode is active.
The insert either lacks grip or displaces too much plastic.
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
Use the smallest useful test, keep the winning change, and record the result.
Make this guide easier to apply to your setup
Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.
Choose any setup details above to emphasize matching notes and produce a safer starting summary.
Know what to do now—and what comes next
Follow one controlled path. Do not stack unrelated changes before the proof test.
- 1Confirm the visual clue
Compare the failed area with the problem and target visuals.
- 2Run the safest first checks
Run the first safe check and change one variable at a time.
- 3Print the proof test
A small representative test no longer shows the original symptom.
- 4Escalate only if needed
Use the next-route guides only when the original symptom remains.
Which description is closest to what you see?
Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.
The insert either lacks grip or displaces too much plastic.
Before you change settings
- Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
- Photograph the failure before removing the print so the evidence is not lost.
- Return extreme overrides to a known profile and change one variable at a time.
- Use a small calibration object or representative section before repeating a long print.
Recognize it, check safely, prove the fix
Use this map before changing multiple settings. The detailed procedure and source references follow below.
Fastest safe order
- Use an insert designed for thermoplastic and the intended screw.
- Print a small hole-size test in the actual material and orientation.
- Provide adequate walls, bosses, and distance from edges.
- Secure the part on a stable surface.
Stop immediately for
- Stay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers.
- Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.
Proof of success
The original symptom no longer appears during a representative calibration or short test print.

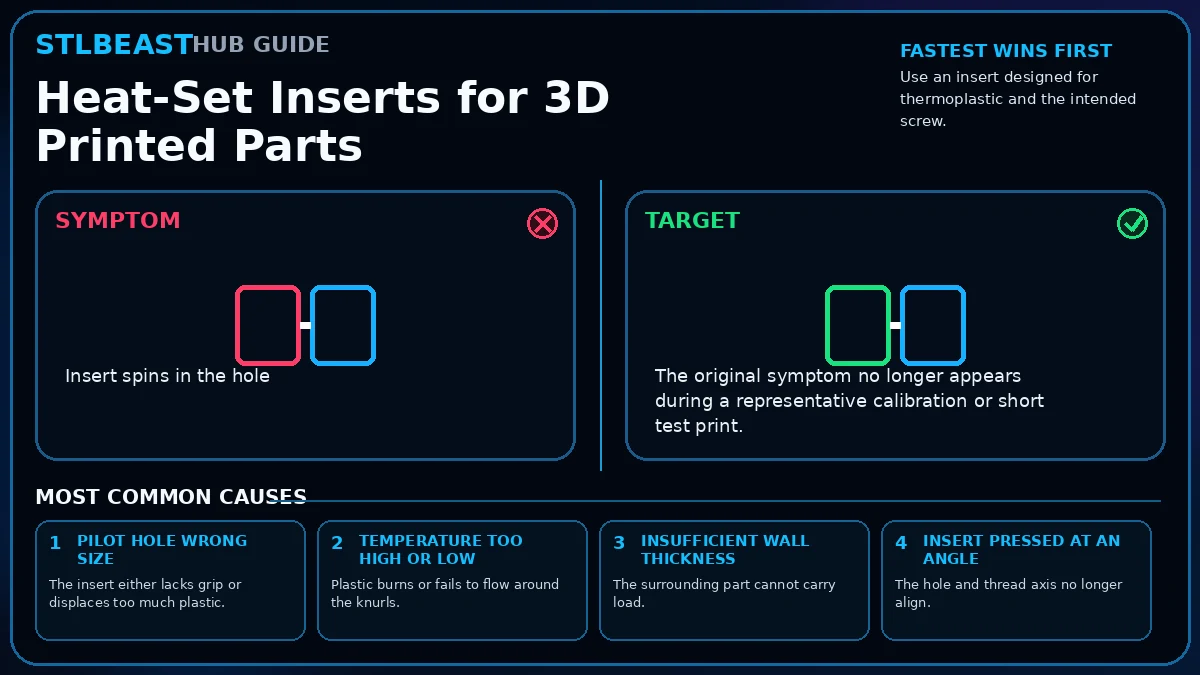

What it looks like
- Insert spins in the hole
- Plastic bulges or cracks around the insert
- Insert sits tilted or too deep
- Threads pull out under load
Most likely causes
- Pilot hole wrong sizeThe insert either lacks grip or displaces too much plastic.
- Temperature too high or lowPlastic burns or fails to flow around the knurls.
- Insufficient wall thicknessThe surrounding part cannot carry load.
- Insert pressed at an angleThe hole and thread axis no longer align.
- Part loaded before coolingThe softened plastic deforms.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.
- Step 1Use an insert designed for thermoplastic and the intended screw.
- Step 2Print a small hole-size test in the actual material and orientation.
- Step 3Provide adequate walls, bosses, and distance from edges.
- Step 4Secure the part on a stable surface.
- Step 5Use a temperature-controlled tip that fits the insert.
- Step 6Heat gradually and press straight without excessive force.
- Step 7Stop at the designed depth and hold alignment briefly.
- Step 8Allow complete cooling before installing or torquing the screw.
Settings to review
| Setting | How to use it |
|---|---|
| Hole diameter | Calibrate for the specific insert, material and printer. |
| Wall count | Use enough perimeter material around the boss. |
| Infill / local reinforcement | Increase material around the joint rather than the whole part. |
| Print orientation | Align layer forces so the boss resists splitting. |
Material notes
Easy to insert but can soften in warm service.
Flows well but can string and remain soft longer.
Tolerates heat better but may warp during printing.
Can produce strong joints but absorbs moisture and may require drying.
Printer context
Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.
Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.
Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.
Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.
Where to look in the slicer
Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.
Print, Filament and Printer Settings; inspect the layer preview before export.
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.
Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.
Controlled test method
Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.
- Save the current profile or photograph every relevant setting.
- Choose one suspected cause from the ranked list and change only the matching variable.
- Print the smallest useful test with the same material, nozzle, plate, and environment.
- Compare the result with the target visual, keep the winning change, and then test the real model.
Confirm the repair before repeating the full print
Use the same printer, material, slicer and key settings as the failed model.
The original symptom is absent and the target feature is repeatable.
The symptom remains in the same location or stage.
Return to the ranked causes and test the next single variable.
Recheck the visual diagnosis →
Next path 1Snap-Fit Joints Too Tight or Too LooseOpen this related Functional Parts guide when the first repair path does not fully explain the remaining symptom.
Open this guide →
Next path 2Print-in-Place Hinges or Moving Parts FusedOpen this related Functional Parts guide when the first repair path does not fully explain the remaining symptom.
Open this guide →
Next path 3Watertight 3D Print LeaksOpen this related Functional Parts guide when the first repair path does not fully explain the remaining symptom.
Open this guide →How to verify the fix
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
- No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
- The successful change is recorded with printer, material, slicer, nozzle or resin, and date.
Choose a result after the print so the guide can point you to the correct next action.
Prevent it next time
- Keep a known-good baseline profile and duplicate it before experimenting.
- Inspect the relevant hardware, feed path, surface, or material condition during routine maintenance.
- Change one variable at a time and use short calibration prints before repeating a long job.
- Recheck the setup after nozzle, hotend, plate, firmware, slicer, material, or major maintenance changes.
Useful public sample. Complete personalized profile for members.
Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.
Frequently asked questions
What should I check first for heat-set inserts for 3d printed parts?
Start with the first repair step and the highest-ranked cause: pilot hole wrong size. It is the fastest low-risk way to separate the main failure from unrelated settings.
Can slicer settings alone cause heat set inserts guide?
Sometimes, but mechanical, electrical, material, and file conditions must be ruled out before using extreme slicer values as a workaround.
Should I change several settings at once?
No. Multiple simultaneous changes hide the real cause and make the successful setup difficult to reproduce.
When should I stop and seek qualified service?
Stop for heater errors, smoke, electrical damage, severe binding, liquid or resin inside electronics, damaged mains wiring, uncontrolled motion, or any condition outside the manufacturer safety procedure.
