Layer Separation and Delamination

Fix horizontal cracks, layers splitting apart, and brittle prints with poor interlayer bonding.

Fast answer

Increase bonding by verifying material condition, temperature, cooling, enclosure, and wall orientation—without blindly raising flow. Confirm the material is dry and not brittle. Change one variable, run the smallest useful proof test, and keep only the change that improves the result.

Visual guide showing the problem, target result and repair path for layer separation and delamination — **See it before changing settings.**Horizontal cracks between layers Compare your print with the visual, then follow the repair order below.

Visual repair path

See the sequence before you start

Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.

Target resultTest coupon bends without splitting at layers.

Checkpoint 1Confirm the material is dry and not brittle.Open step →Checkpoint 2Check the filament maker’s nozzle-temperature range.Open step →Checkpoint 3Increase temperature in small increments while monitoring surface quality.Open step →Checkpoint 4Reduce fan/drafts for materials that need more heat retention.Open step →

Choose how you want to troubleshoot

Start fast or open every detail

Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.

Quick Fix mode is active.

Start hereTemperature too low

New layers do not fuse well to previous layers.

Success should look like

Test coupon bends without splitting at layers.
Tall walls remain closed.

Safe workflowOne change at a time

Use the smallest useful test, keep the winning change, and record the result.

Optional context

Make this guide easier to apply to your setup

Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.

Printer typeExtruder setupMaterialSlicerNozzle size

General guide view

Choose any setup details above to emphasize matching notes and produce a safer starting summary.

Guided repair journey

Know what to do now—and what comes next

Follow one controlled path. Do not stack unrelated changes before the proof test.

Typical first pass 10–30 min

1
Confirm the visual clue
Compare the failed area with the problem and target visuals.
2
Run the safest first checks
Run the first safe check and change one variable at a time.
3
Print the proof test
A small representative test no longer shows the original symptom.
4
Escalate only if needed
Use the next-route guides only when the original symptom remains.

Issue-specific visual evidence for layer separation and delamination

V906 premium evidence panel

Read the failure before changing a setting

Visible clueHorizontal cracks between layers

Most likely starting causeTemperature too low

New layers do not fuse well to previous layers.

First safe actionConfirm the material is dry and not brittle.

Proof targetTest coupon bends without splitting at layers.

Open the verification test →

Visual symptom selector

Which description is closest to what you see?

Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.

Best first starting point

Temperature too low

New layers do not fuse well to previous layers.

Open step 1 →

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Photograph the failure before removing the print so the evidence is not lost.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative section before repeating a long print.

STLBEAST diagnostic map

Recognize it, check safely, prove the fix

Use this map before changing multiple settings. The detailed procedure and source references follow below.

ProblemHorizontal cracks between layers

Target resultTest coupon bends without splitting at layers.

Fastest safe order

Confirm the material is dry and not brittle.
Check the filament maker’s nozzle-temperature range.
Increase temperature in small increments while monitoring surface quality.
Reduce fan/drafts for materials that need more heat retention.

Stop immediately for

Change one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Proof of success

Test coupon bends without splitting at layers.

Visual troubleshooting map

See the problem, target result, and repair order

Use the poster as a quick reference, then follow the detailed checks below. Settings shown in the visual are starting points, not universal values.

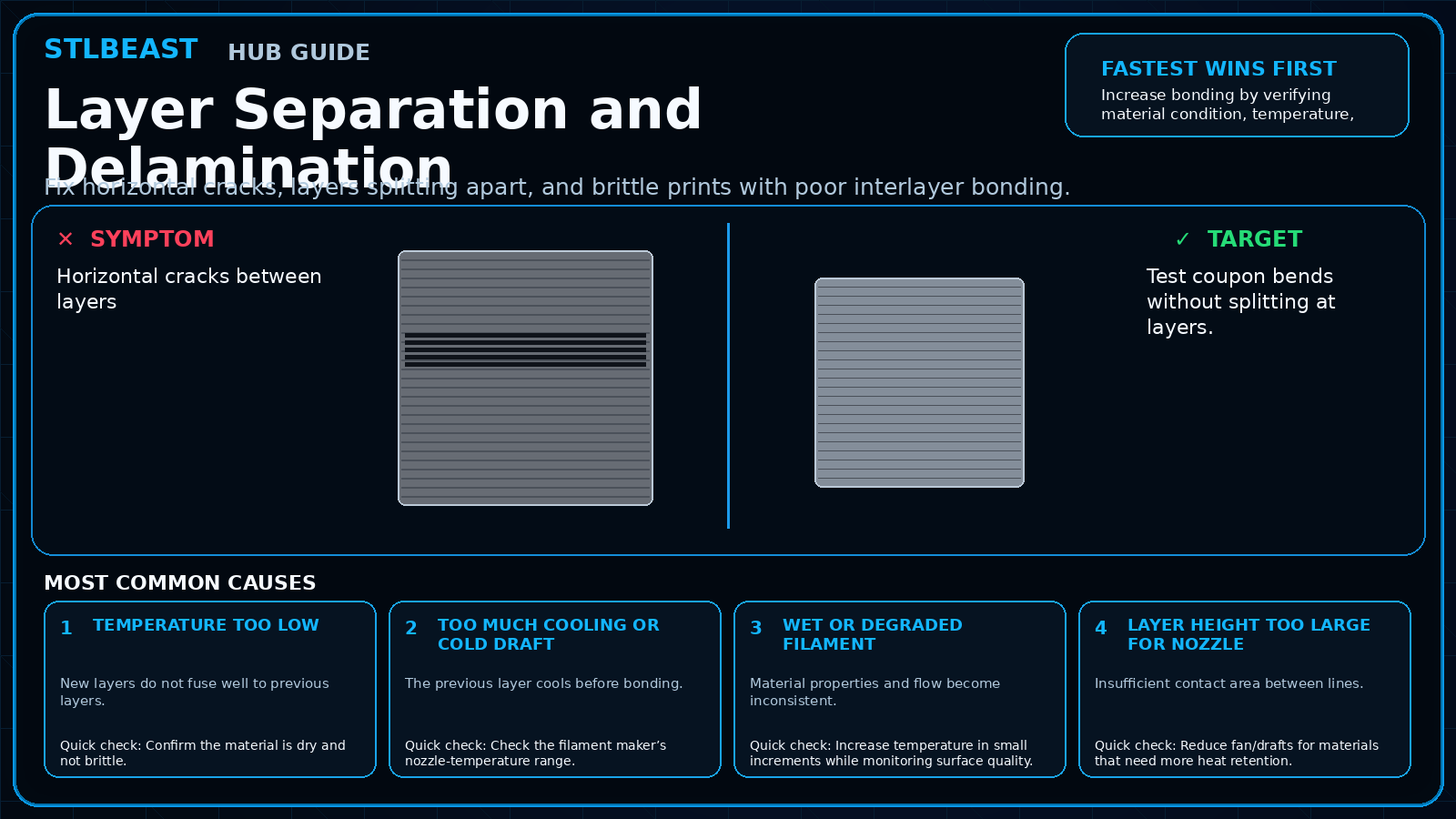

STLBEAST visual troubleshooting poster for layer separation and delamination

Select the image to open a larger readable view.

What it looks like

Horizontal cracks between layers
Part snaps cleanly along layer lines
Tall walls split during printing
Outer walls look normal but strength is poor

Most likely causes

Temperature too lowNew layers do not fuse well to previous layers.
Too much cooling or cold draftThe previous layer cools before bonding.
Wet or degraded filamentMaterial properties and flow become inconsistent.
Layer height too large for nozzleInsufficient contact area between lines.
Part orientation places load across layersFDM is anisotropic.

Action plan

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.

Step 1
Confirm the material is dry and not brittle.
Step 2
Check the filament maker’s nozzle-temperature range.
Step 3
Increase temperature in small increments while monitoring surface quality.
Step 4
Reduce fan/drafts for materials that need more heat retention.
Step 5
Verify layer height and line width are appropriate for the nozzle.
Step 6
Increase wall count and orient the part so critical loads do not pull layers apart.
Step 7
For ABS/ASA and similar materials, stabilize enclosure temperature and ventilate safely.

Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Tune carefully

Settings to review

Setting	How to use it
Nozzle temperature	Tune in small steps within the material range.
Fan	Lower only as material/detail allows.
Layer height	Keep within nozzle/profile limits.
Walls	More walls often improve functional strength more predictably than extreme infill.

Material notes

PLA

Usually bonds well but can become brittle from low temperature or poor filament.

PETG

Strong bonding is typical; severe separation suggests cooling, moisture, or low temperature.

ABS/ASA

Thermal control is critical.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.

CoreXY

Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.

PrusaSlicer

Print, Filament and Printer Settings; inspect the layer preview before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.

Controlled test method

Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.

Save the current profile or photograph every relevant setting.
Choose one suspected cause from the ranked list and change only the matching variable.
Print the smallest useful test with the same material, nozzle, plate, and environment.
Compare the result with the target visual, keep the winning change, and then test the real model.

Standardized proof test

Confirm the repair before repeating the full print

Test modelThin-walled strength tower

Setup

Use the same material and chamber conditions; bend only after cooling.

Pass condition

Layers fuse continuously and the tower flexes or breaks through material, not between layers.

If it still fails

Cracks follow layer lines or split with light force.

Next controlled action

Increase bonding temperature, reduce cooling, stabilize the enclosure and verify flow.

Recheck the visual diagnosis →

If the proof test still fails

Do not repeat the same change—follow the next strongest path

These crawlable, issue-specific links give visitors and search engines a clear relationship between overlapping 3D-printing failures.

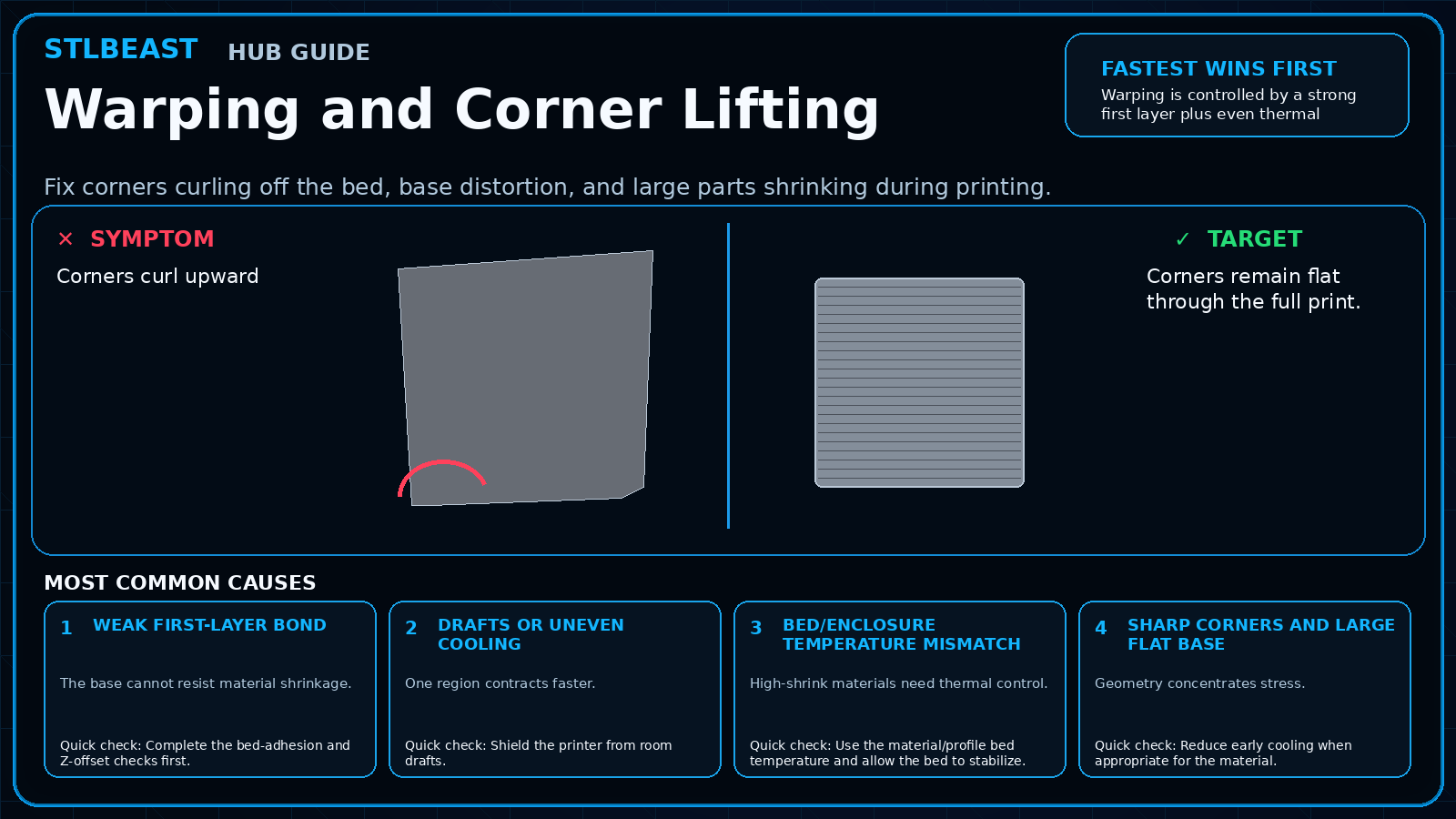

Visual troubleshooting guide for 3d print warping and corner lifting

Next path 13D Print Warping and Corner Lifting

Use this next when corners lift after the first layer initially appears correct.

Open this guide →

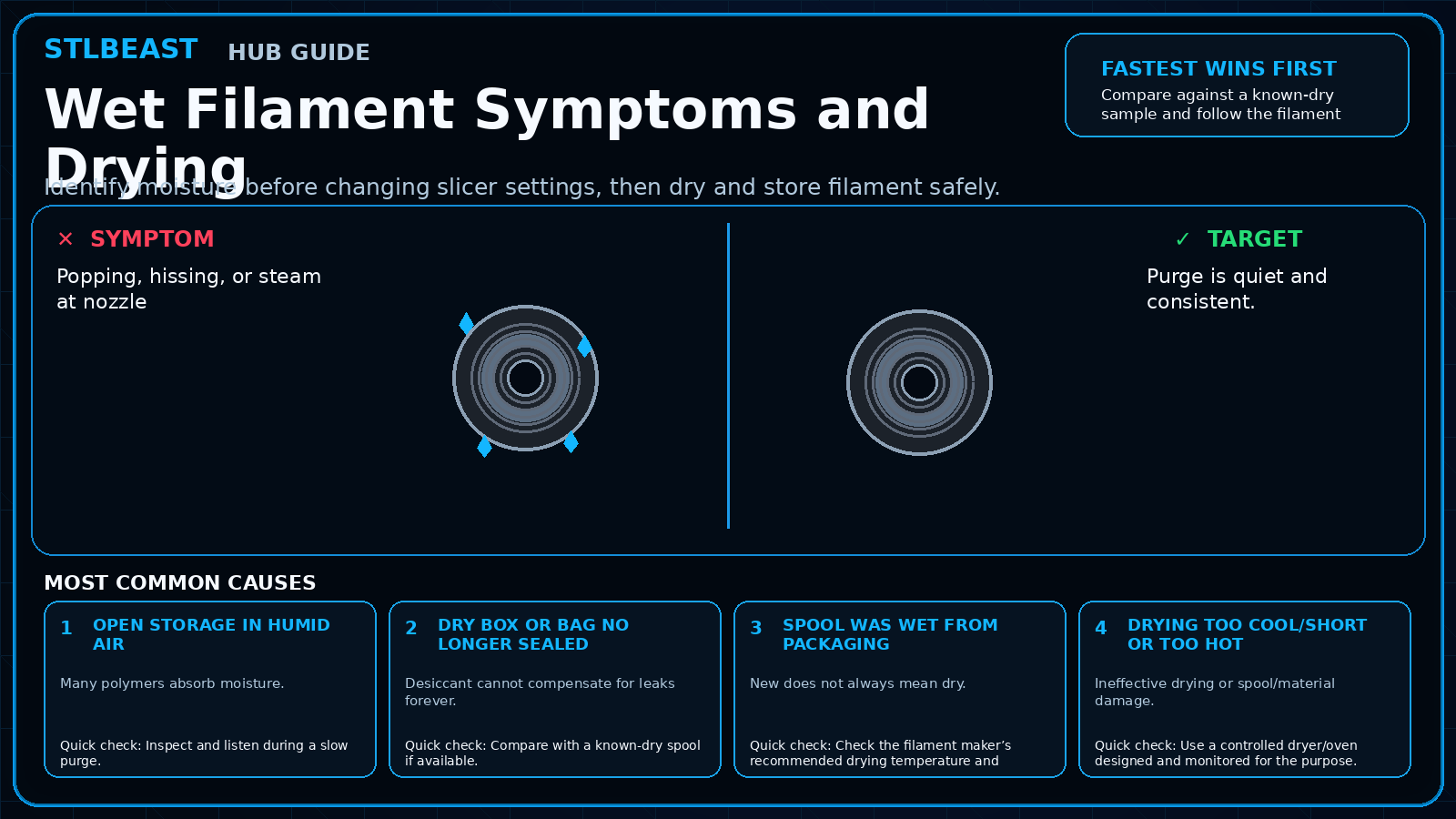

Visual troubleshooting guide for wet filament symptoms and drying

Next path 2Wet Filament Symptoms and Drying

Use this next when popping, rough surfaces or repeated stringing suggest moisture.

Open this guide →

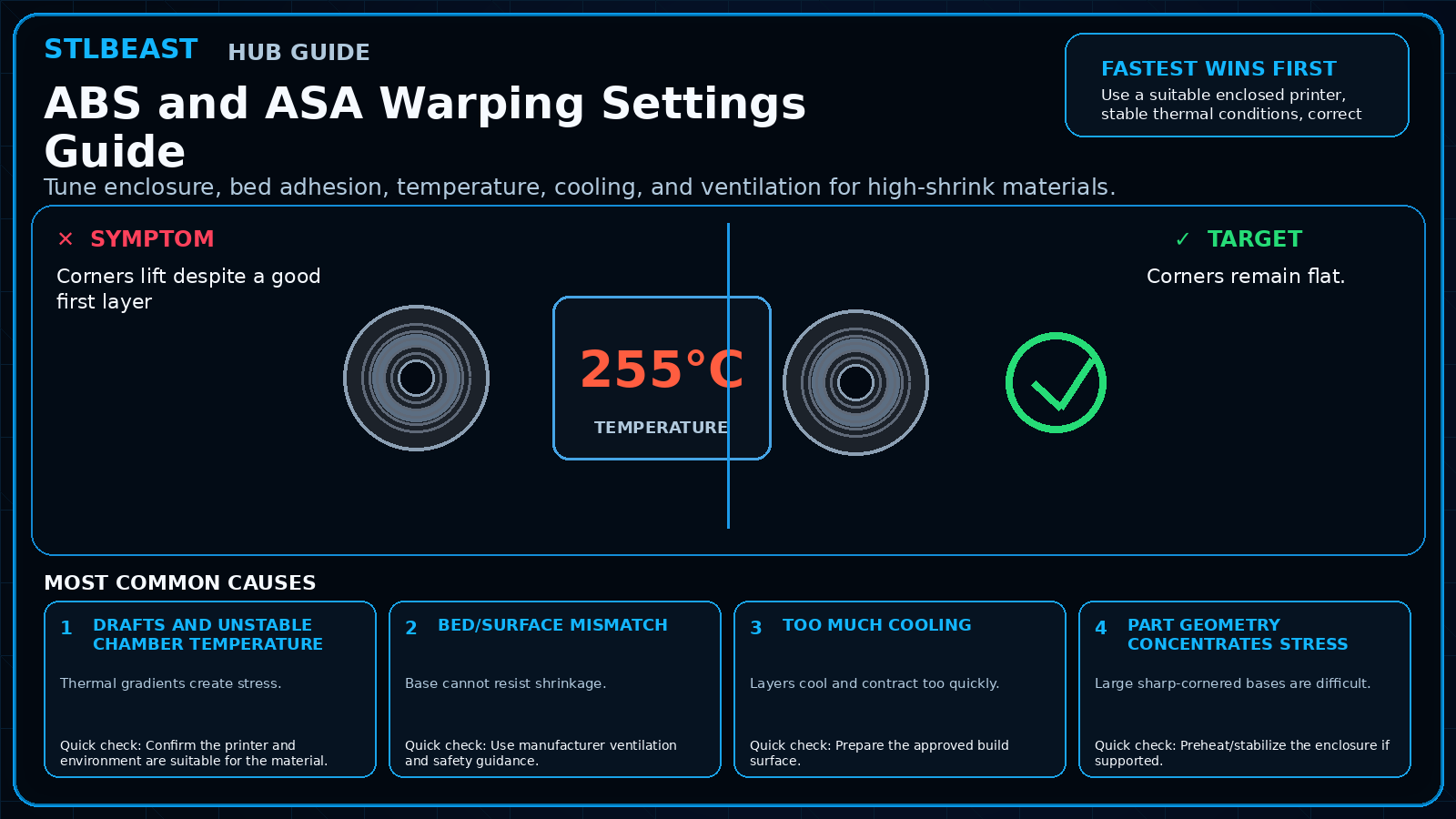

Visual troubleshooting guide for abs and asa warping settings guide

Next path 3ABS and ASA Warping Settings Guide

Open this related Material Settings guide when the first repair path does not fully explain the remaining symptom.

Open this guide →

Proof before you move on

How to verify the fix

Test coupon bends without splitting at layers.
Tall walls remain closed.
Surface does not show overheating or sagging.
Functional load aligns with stronger print directions.

Run the smallest useful test first.

Choose a result after the print so the guide can point you to the correct next action.

Keep the winning setup

Prevent it next time

Design fillets and avoid abrupt stress risers.
Store filament dry.
Use enclosure profiles for high-shrink materials.
Document proven orientation per product.
