How to Remove Supports Without Damaging the Print
Let the part cool, use the right cutters and direction, remove large branches first, support delicate features, and finish contact marks gradually instead of te.
Let the part cool, use the right cutters and direction, remove large branches first, support delicate features, and finish contact marks gradually instead of tearing supports away.
See the sequence before you start
Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.
Start fast or open every detail
Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.
Quick Fix mode is active.
Soft material stretches or tears.
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
Use the smallest useful test, keep the winning change, and record the result.
Make this guide easier to apply to your setup
Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.
Choose any setup details above to emphasize matching notes and produce a safer starting summary.
Know what to do now—and what comes next
Follow one controlled path. Do not stack unrelated changes before the proof test.
- 1Confirm the visual clue
Compare the failed area with the problem and target visuals.
- 2Run the safest first checks
Run the first safe check and change one variable at a time.
- 3Print the proof test
A small representative test no longer shows the original symptom.
- 4Escalate only if needed
Use the next-route guides only when the original symptom remains.
Which description is closest to what you see?
Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.
Before you change settings
- Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
- Photograph the failure before removing the print so the evidence is not lost.
- Return extreme overrides to a known profile and change one variable at a time.
- Use a small calibration object or representative section before repeating a long print.
Recognize it, check safely, prove the fix
Use this map before changing multiple settings. The detailed procedure and source references follow below.
Fastest safe order
- Allow FDM parts to cool fully or complete resin post-cure as required.
- Wear eye protection and use flush cutters, pliers, deburring tools, and a stable work surface.
- Study the support tree and remove external branches before trapped sections.
- Cut near the support side while bracing the model feature.
Stop immediately for
- Stay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers.
- Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.
Proof of success
The original symptom no longer appears during a representative calibration or short test print.

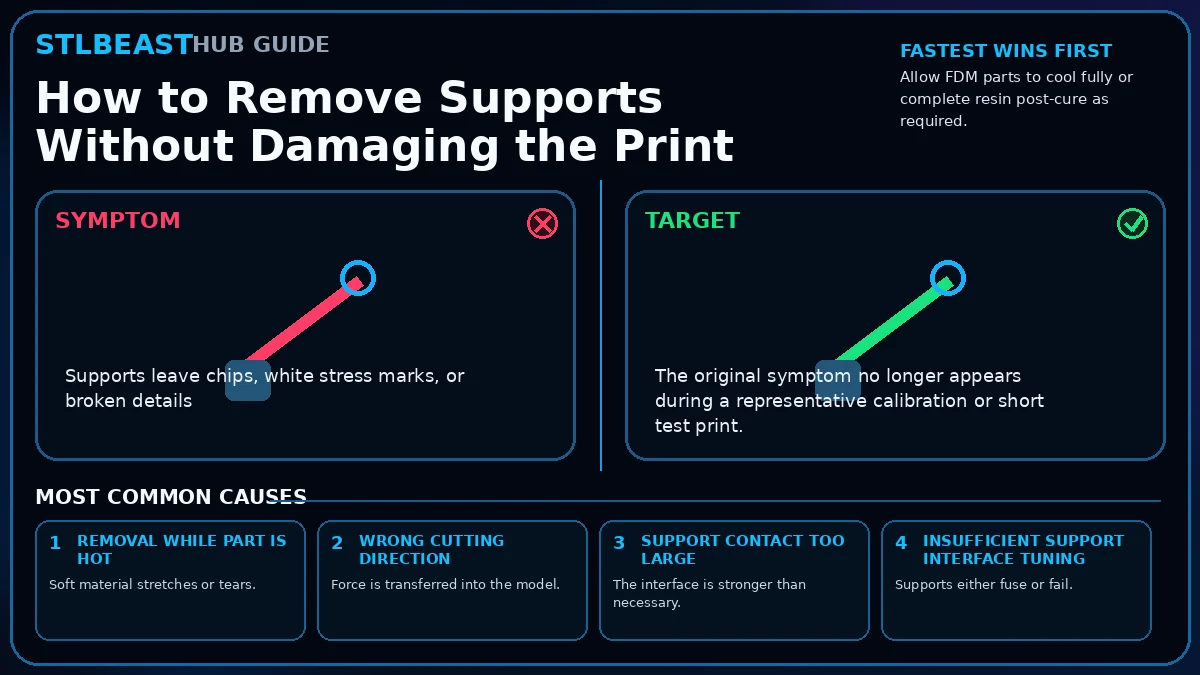

What it looks like
- Supports leave chips, white stress marks, or broken details
- Thin features snap during removal
- Support interfaces fuse to the model
- Cut surfaces remain rough after cleanup
Most likely causes
- Removal while part is hotSoft material stretches or tears.
- Wrong cutting directionForce is transferred into the model.
- Support contact too largeThe interface is stronger than necessary.
- Insufficient support interface tuningSupports either fuse or fail.
- Fragile model orientationDelicate features carry removal loads.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.
- Step 1Allow FDM parts to cool fully or complete resin post-cure as required.
- Step 2Wear eye protection and use flush cutters, pliers, deburring tools, and a stable work surface.
- Step 3Study the support tree and remove external branches before trapped sections.
- Step 4Cut near the support side while bracing the model feature.
- Step 5Use gentle flexing only where the geometry and material allow it.
- Step 6Trim remaining nubs rather than pulling them.
- Step 7Sand or scrape gradually with suitable tools and ventilation.
- Step 8Record difficult areas and adjust support contact, orientation, or interface for the next print.
Settings to review
| Setting | How to use it |
|---|---|
| Support contact diameter | Reduce only until removal improves without support failure. |
| Interface layers | Create a controlled separation surface. |
| Z distance | Tune by material, layer height, and slicer. |
| Support density | Use enough stability without creating a solid block. |
Material notes
Can chip at sharp details; allow full cooling.
May bond strongly; interface tuning is important.
Supports can fuse and flex; design and orientation matter.
Remove at the recommended stage and use proper PPE.
Printer context
Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.
Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.
Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.
Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.
Where to look in the slicer
Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.
Print, Filament and Printer Settings; inspect the layer preview before export.
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.
Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.
Controlled test method
Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.
- Save the current profile or photograph every relevant setting.
- Choose one suspected cause from the ranked list and change only the matching variable.
- Print the smallest useful test with the same material, nozzle, plate, and environment.
- Compare the result with the target visual, keep the winning change, and then test the real model.
Confirm the repair before repeating the full print
Use the same printer, material, slicer and key settings as the failed model.
The original symptom is absent and the target feature is repeatable.
The symptom remains in the same location or stage.
Return to the ranked causes and test the next single variable.
Recheck the visual diagnosis →

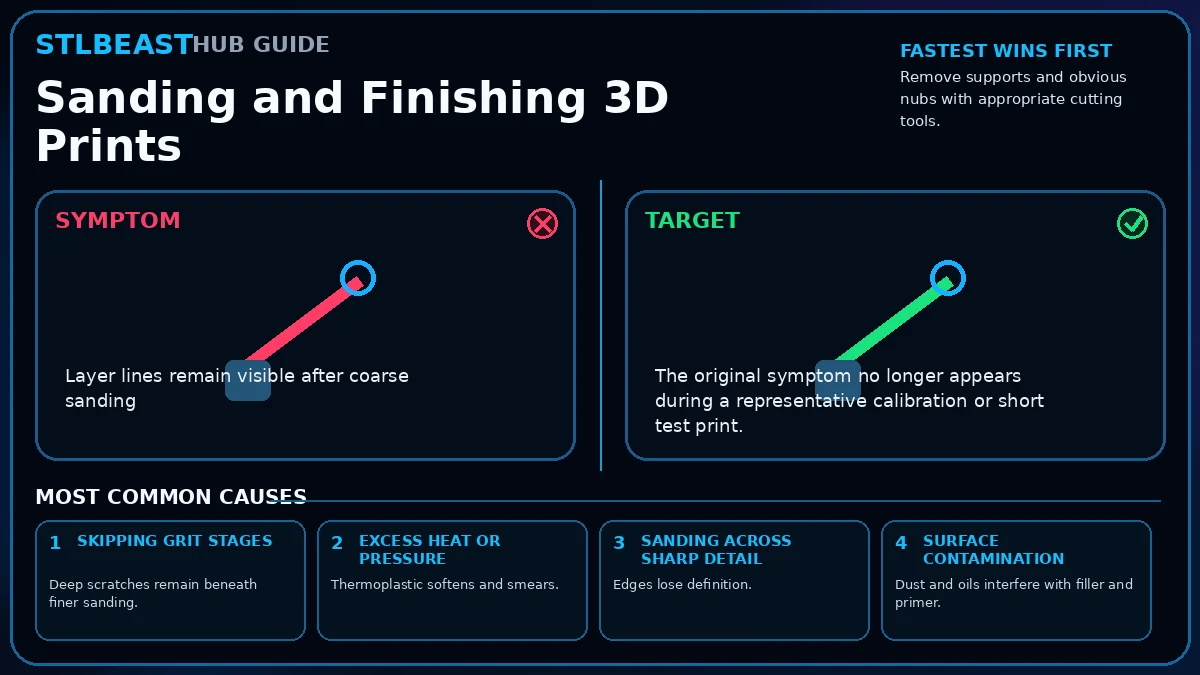

Next path 1Sanding and Finishing 3D PrintsOpen this related Post-Processing guide when the first repair path does not fully explain the remaining symptom.
Open this guide →

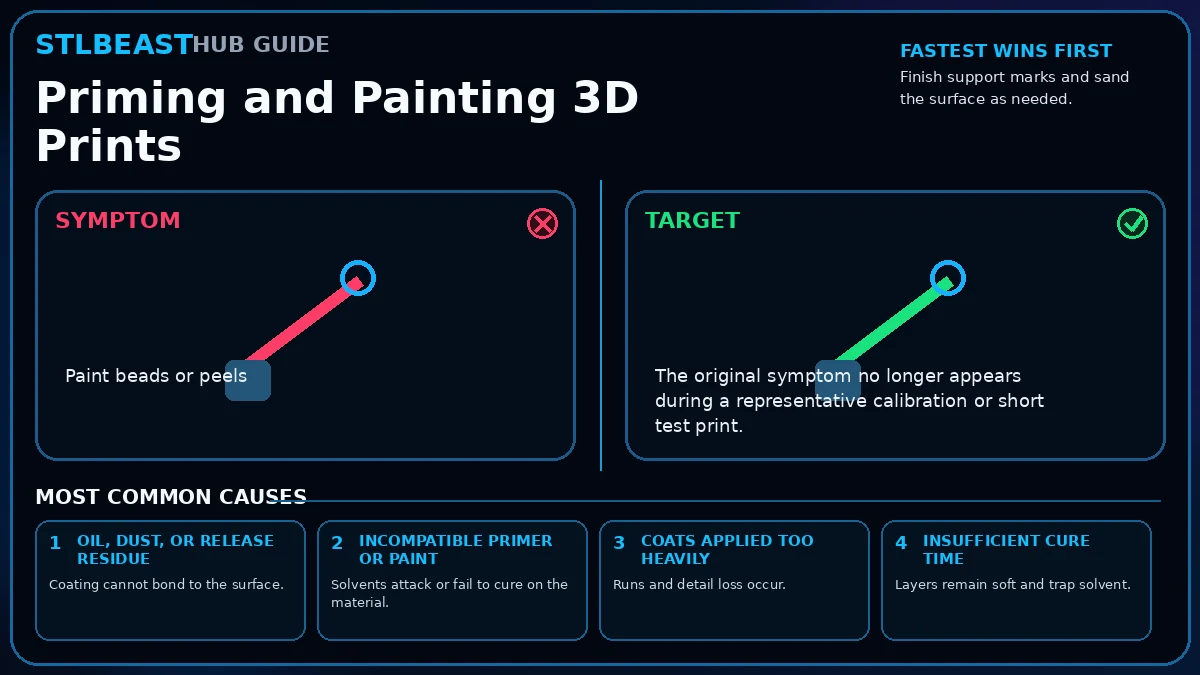

Next path 2Priming and Painting 3D PrintsOpen this related Post-Processing guide when the first repair path does not fully explain the remaining symptom.
Open this guide →

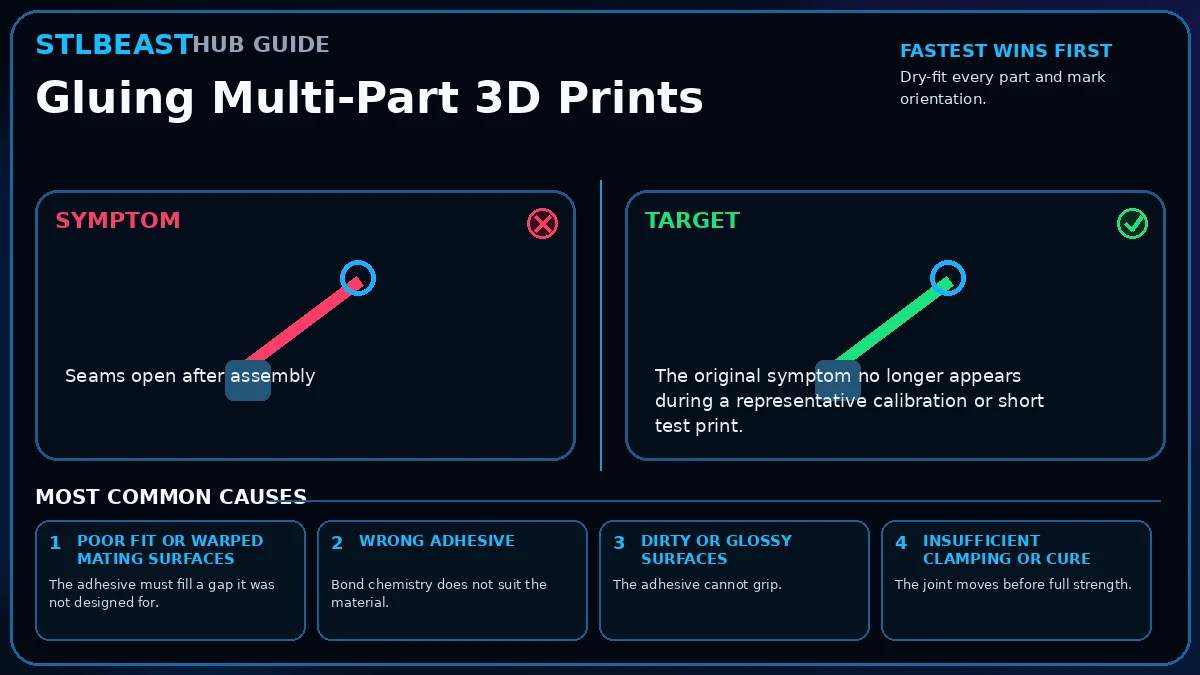

Next path 3Gluing Multi-Part 3D PrintsOpen this related Post-Processing guide when the first repair path does not fully explain the remaining symptom.
Open this guide →How to verify the fix
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
- No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
- The successful change is recorded with printer, material, slicer, nozzle or resin, and date.
Choose a result after the print so the guide can point you to the correct next action.
Prevent it next time
- Keep a known-good baseline profile and duplicate it before experimenting.
- Inspect the relevant hardware, feed path, surface, or material condition during routine maintenance.
- Change one variable at a time and use short calibration prints before repeating a long job.
- Recheck the setup after nozzle, hotend, plate, firmware, slicer, material, or major maintenance changes.
Useful public sample. Complete personalized profile for members.
Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.
Frequently asked questions
What should I check first for how to remove supports without damaging the print?
Start with the first repair step and the highest-ranked cause: removal while part is hot. It is the fastest low-risk way to separate the main failure from unrelated settings.
Can slicer settings alone cause support removal without damage?
Sometimes, but mechanical, electrical, material, and file conditions must be ruled out before using extreme slicer values as a workaround.
Should I change several settings at once?
No. Multiple simultaneous changes hide the real cause and make the successful setup difficult to reproduce.
When should I stop and seek qualified service?
Stop for heater errors, smoke, electrical damage, severe binding, liquid or resin inside electronics, damaged mains wiring, uncontrolled motion, or any condition outside the manufacturer safety procedure.
