Bed Leveling & ProbesIntermediate16 minReviewed 2026

Warped Build Plate or Uneven Print Surface

Separate removable-sheet, bed, magnet, mounting, and mesh errors; reseat components, remove debris, avoid over-constraining mounts, and replace permanently dist.

Fast answer

Separate removable-sheet, bed, magnet, mounting, and mesh errors; reseat components, remove debris, avoid over-constraining mounts, and replace permanently distorted parts.

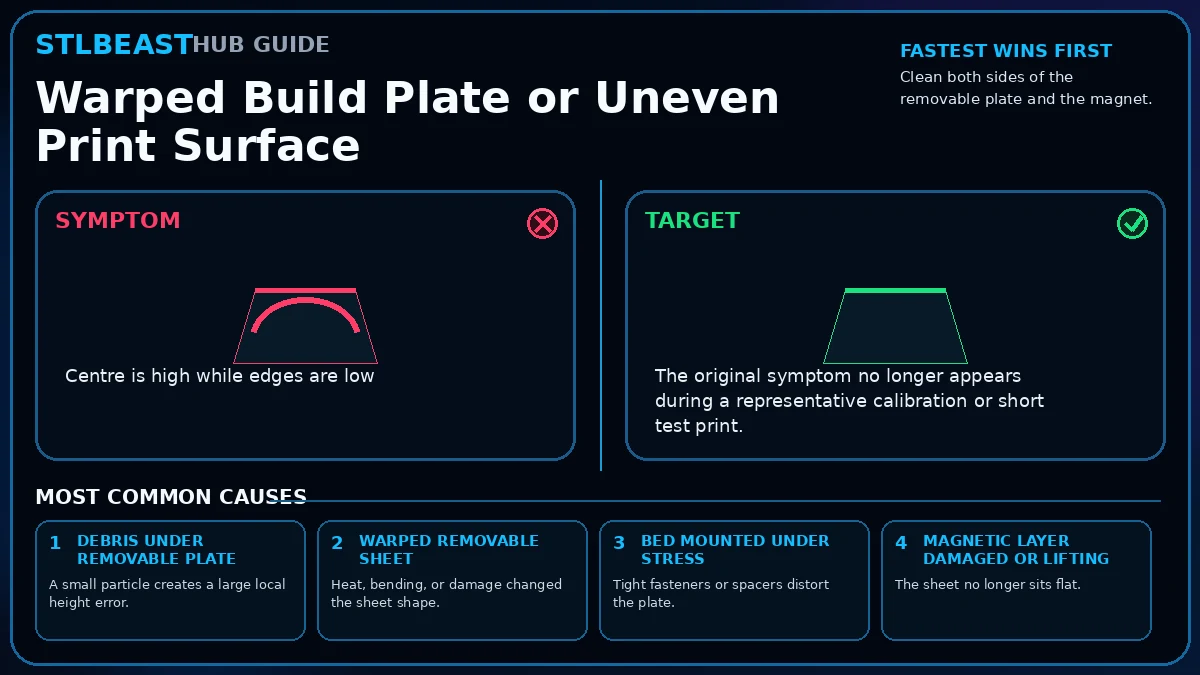

Visual diagnosis for warped build plate or uneven print surface — Compare the symptom and target, then follow the ranked checks.

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Photograph the failure before removing the print so the evidence is not lost.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative section before repeating a long print.

What it looks like

Centre is high while edges are low
One corner cannot be corrected with normal leveling
Mesh shows a repeatable bowl or ridge
Different removable sheets produce different results

Most likely causes

Debris under removable plateA small particle creates a large local height error.
Warped removable sheetHeat, bending, or damage changed the sheet shape.
Bed mounted under stressTight fasteners or spacers distort the plate.
Magnetic layer damaged or liftingThe sheet no longer sits flat.
Bed casting or glass is distortedThe underlying surface is permanently uneven.

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.

Clean both sides of the removable plate and the magnet.
Rotate or swap the removable sheet to identify whether the shape follows it.
Check bed screws, spacers, mounts, and clips for uneven stress.
Allow the bed to heat soak, then create a fresh mesh.
Compare the mesh at room temperature and operating temperature.
Use a straightedge only when the bed is cool and the manufacturer allows it.
Avoid stacking improvised shims where they can move or affect heating.
Replace a permanently warped or damaged sheet, magnet, glass, or bed.

Safety and accuracyStay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers. Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.

Settings to review

Setting	How to use it
Mesh compensation	Use for small repeatable variation, not severe mechanical distortion.
Bed temperature	Measure and level at the temperature used for printing when recommended.
First-layer width	Do not use extreme width to conceal a warped surface.

Material notes

Spring steel

Can be damaged by sharp bending or poor storage.

Glass

May be flatter but can chip or create release problems.

Large beds

Thermal expansion makes heat soak and mounting stress more important.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.

CoreXY

Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.

PrusaSlicer

Print, Filament and Printer Settings; inspect the layer preview before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.

How to verify the fix

The original symptom no longer appears during a representative calibration or short test print.
Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
The successful change is recorded with printer, material, slicer, nozzle or resin, and date.

Prevent it next time

Keep a known-good baseline profile and duplicate it before experimenting.
Inspect the relevant hardware, feed path, surface, or material condition during routine maintenance.
Change one variable at a time and use short calibration prints before repeating a long job.
Recheck the setup after nozzle, hotend, plate, firmware, slicer, material, or major maintenance changes.

Printer Settings

Useful public sample. Complete personalized profile for members.

Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.

Mesh compensationUse for small repeatable variation, not severe mechanical distortion.

Bed temperatureMeasure and level at the temperature used for printing when recommended.

Try settings sample Compare membership

Frequently asked questions

What should I check first for warped build plate or uneven print surface?

Start with the first repair step and the highest-ranked cause: debris under removable plate. It is the fastest low-risk way to separate the main failure from unrelated settings.

Can slicer settings alone cause warped build plate?

Sometimes, but mechanical, electrical, material, and file conditions must be ruled out before using extreme slicer values as a workaround.

Should I change several settings at once?

No. Multiple simultaneous changes hide the real cause and make the successful setup difficult to reproduce.

When should I stop and seek qualified service?

Stop for heater errors, smoke, electrical damage, severe binding, liquid or resin inside electronics, damaged mains wiring, uncontrolled motion, or any condition outside the manufacturer safety procedure.
