Elephant Foot Fix

Correct swollen first layers, oversized bottoms, tight holes near the bed, and rounded lower edges.

Fast answer

Fix Z offset and bed temperature first, then use first-layer compensation or a small model chamfer for the remaining predictable expansion.

Start AI Doctor sample Preview printer settings Search all fixes

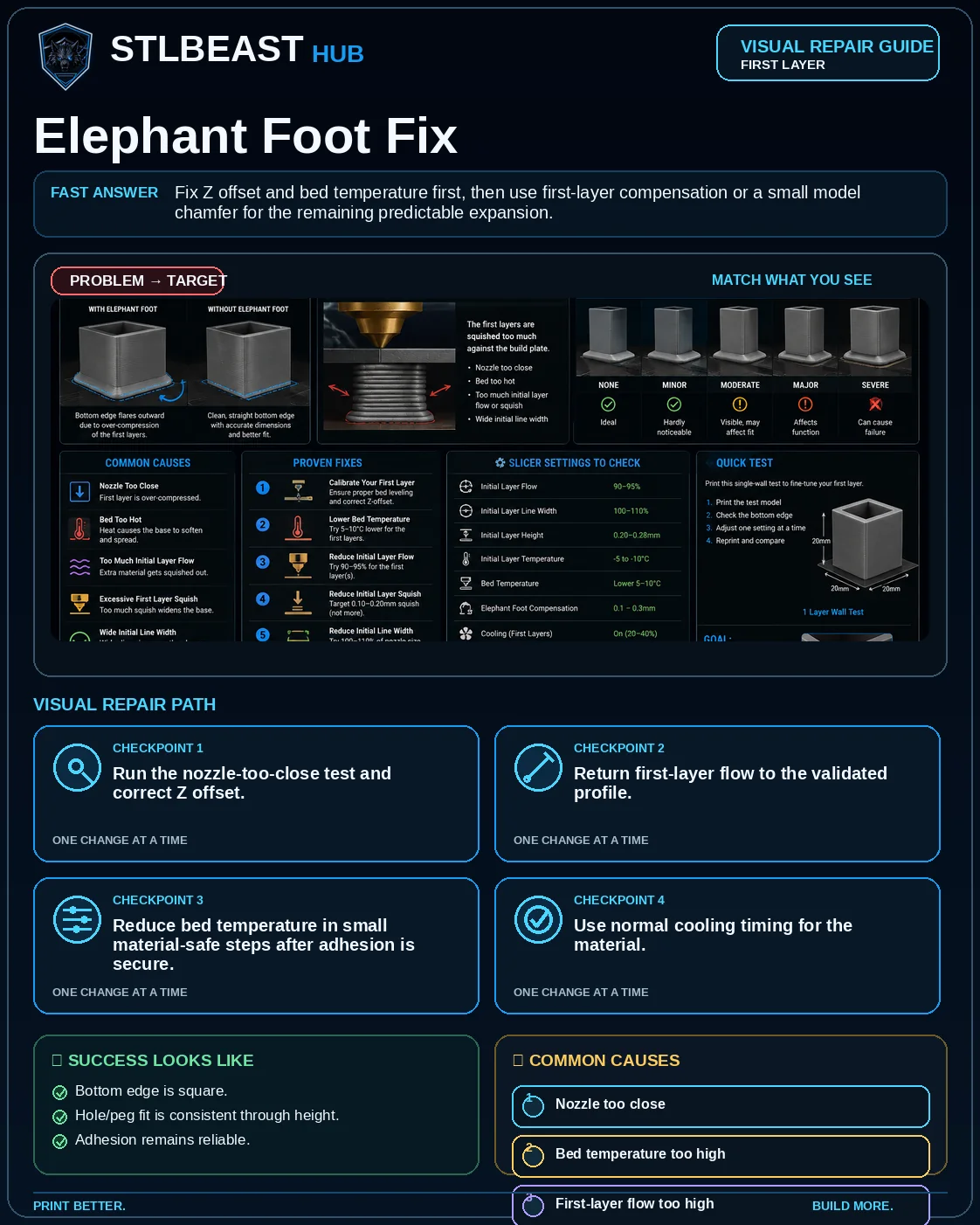

Visual comparison for elephant foot fix — Use the visual comparison first, then follow the ordered checks below.

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Clean and correctly seat the build plate before adjusting Z offset or flow.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative model section before repeating a long print.

What it looks like

Bottom edge flares outward
Holes are tight only near the bed
First layer has heavy ridges
Part dimensions improve above the first layers

Most likely causes

Nozzle too closeExcess squish pushes material outward.
Bed temperature too highLower layers remain soft under weight.
First-layer flow too highToo much material is deposited.
No cooling or heavy part massBase deforms before solidifying.
No model relief/chamferSharp designed edge has no process allowance.

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test, and record the successful setup.

Run the nozzle-too-close test and correct Z offset.
Return first-layer flow to the validated profile.
Reduce bed temperature in small material-safe steps after adhesion is secure.
Use normal cooling timing for the material.
Apply slicer elephant-foot compensation conservatively.
Add a small chamfer to the model when design control is available.
Validate fit at the final print orientation.

Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Fast decision path

1If you see evidence of nozzle too close

Excess squish pushes material outward. Confirm it with the smallest safe test before continuing.

2If you see evidence of bed temperature too high

Lower layers remain soft under weight. Confirm it with the smallest safe test before continuing.

3If you see evidence of first-layer flow too high

Too much material is deposited. Confirm it with the smallest safe test before continuing.

Settings to review

Setting	How to use it
First-layer compensation	Use only after height and temperature are correct.
Bed temperature	Lower carefully without losing adhesion.
Initial layer flow	Avoid using excess flow for adhesion.

Material notes

PLA

Often solved by Z offset and bed heat.

PETG

Avoid over-squish and excessive adhesion.

ABS/ASA

Thermal control can complicate base tuning.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, eccentric wheels, and first-layer consistency across the plate.

CoreXY

Start from the official machine profile; inspect belt balance, input shaping, flow, pressure advance, and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability, and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure, and personal-protection procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Process → Quality, Strength, Speed, Support and Filament settings; use calibration tools for temperature, flow and pressure advance.

PrusaSlicer

Print Settings, Filament Settings and Printer Settings; inspect the sliced preview and layer slider before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Build Plate Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft and hollow/drain settings.

How to verify the fix

Bottom edge is square.
Hole/peg fit is consistent through height.
Adhesion remains reliable.
Compensation does not undercut the base.

Prevent it next time

Use a first-layer calibration pattern.
Save plate/material profiles.
Design a base chamfer for precision parts.
Do not rely on very high bed heat for adhesion.
