Nozzle Too Far from the Bed

Fix round, loose first-layer lines, gaps, weak adhesion, and lines that follow the nozzle.

Fast answer

Lower Z offset in small steps until the deposited lines flatten slightly and touch each other without ridges.

Visual guide showing the problem, target result and repair path for nozzle too far from the bed — **See it before changing settings.**First-layer lines look round like string Compare your print with the visual, then follow the repair order below.

Visual repair path

See the sequence before you start

Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.

Target resultNo line gaps remain.

Checkpoint 1Clean the surface before changing Z offset.Open step →Checkpoint 2Run a bed mesh or leveling routine with the plate installed correctly.Open step →Checkpoint 3Lower Z offset in very small increments during a first-layer test.Open step →Checkpoint 4If line width remains inconsistent, inspect flow and nozzle condition.Open step →

Choose how you want to troubleshoot

Start fast or open every detail

Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.

Quick Fix mode is active.

Start hereZ offset too high

Filament is being laid onto the plate rather than pressed into it.

Success should look like

No line gaps remain.
The pattern stays attached when lightly rubbed after cooling.

Safe workflowOne change at a time

Use the smallest useful test, keep the winning change, and record the result.

Optional context

Make this guide easier to apply to your setup

Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.

Printer typeExtruder setupMaterialSlicerNozzle size

General guide view

Choose any setup details above to emphasize matching notes and produce a safer starting summary.

Guided repair journey

Know what to do now—and what comes next

Follow one controlled path. Do not stack unrelated changes before the proof test.

Typical first pass 10–30 min

1
Confirm the visual clue
Compare the failed area with the problem and target visuals.
2
Run the safest first checks
Run the first safe check and change one variable at a time.
3
Print the proof test
A small representative test no longer shows the original symptom.
4
Escalate only if needed
Use the next-route guides only when the original symptom remains.

Issue-specific visual evidence for nozzle too far from the bed

V906 premium evidence panel

Read the failure before changing a setting

Visible clueFirst-layer lines look round like string

Most likely starting causeZ offset too high

Filament is being laid onto the plate rather than pressed into it.

First safe actionClean the surface before changing Z offset.

Proof targetNo line gaps remain.

Open the verification test →

Visual symptom selector

Which description is closest to what you see?

Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.

Best first starting point

Z offset too high

Filament is being laid onto the plate rather than pressed into it.

Open step 1 →

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Clean and correctly seat the build plate before adjusting Z offset or flow.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative section before repeating a long print.

STLBEAST diagnostic map

Recognize it, check safely, prove the fix

Use this map before changing multiple settings. The detailed procedure and source references follow below.

ProblemFirst-layer lines look round like string

Target resultNo line gaps remain.

Fastest safe order

Clean the surface before changing Z offset.
Run a bed mesh or leveling routine with the plate installed correctly.
Lower Z offset in very small increments during a first-layer test.
If line width remains inconsistent, inspect flow and nozzle condition.

Stop immediately for

Change one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Proof of success

No line gaps remain.

Visual troubleshooting map

See the problem, target result, and repair order

Use the poster as a quick reference, then follow the detailed checks below. Settings shown in the visual are starting points, not universal values.

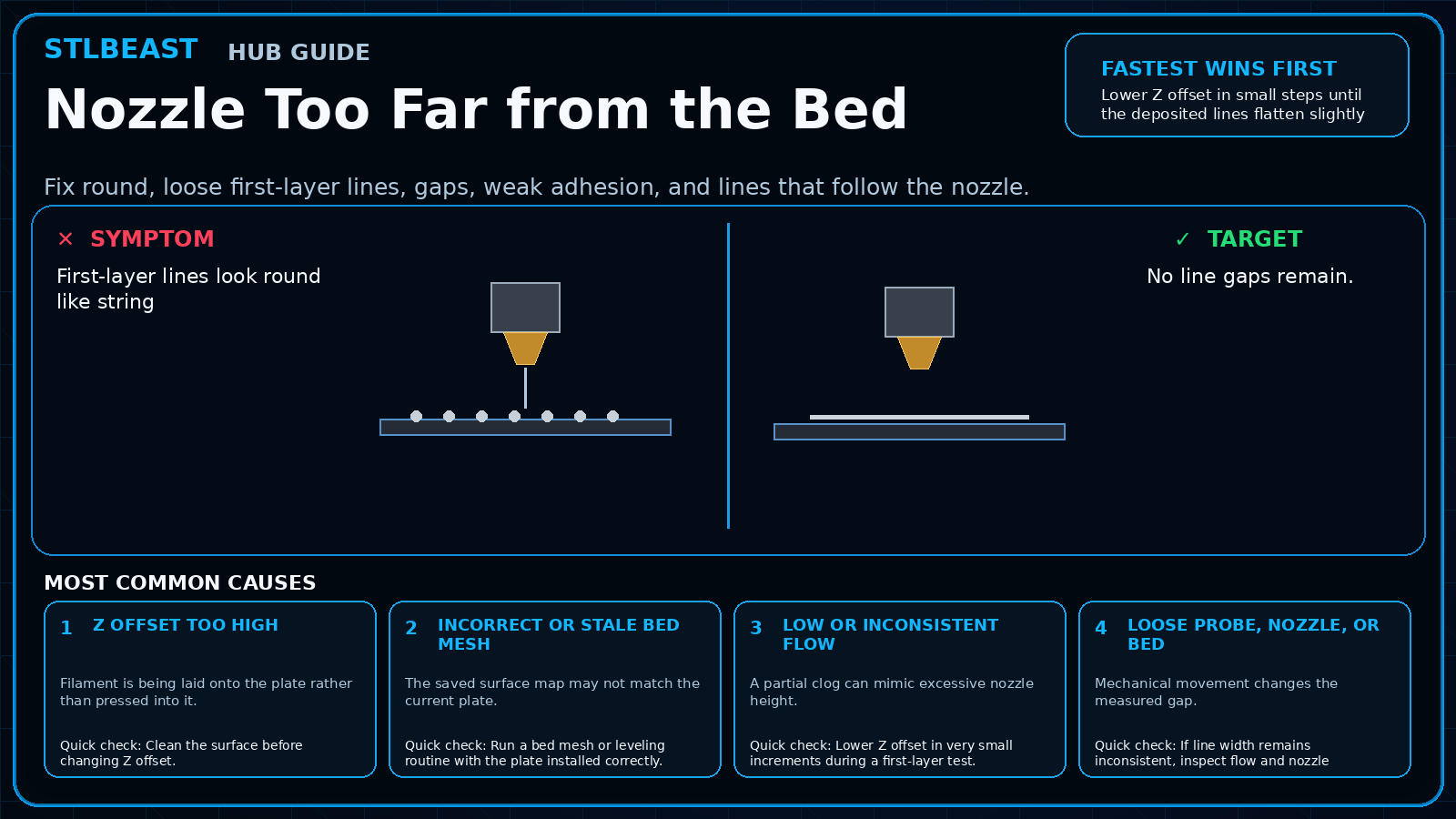

STLBEAST visual troubleshooting poster for nozzle too far from the bed

Select the image to open a larger readable view.

What it looks like

First-layer lines look round like string
Visible gaps remain between lines
The nozzle drags previously printed lines
The part detaches easily

Most likely causes

Z offset too highFilament is being laid onto the plate rather than pressed into it.
Incorrect or stale bed meshThe saved surface map may not match the current plate.
Low or inconsistent flowA partial clog can mimic excessive nozzle height.
Loose probe, nozzle, or bedMechanical movement changes the measured gap.

Action plan

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.

Step 1
Clean the surface before changing Z offset.
Step 2
Run a bed mesh or leveling routine with the plate installed correctly.
Step 3
Lower Z offset in very small increments during a first-layer test.
Step 4
If line width remains inconsistent, inspect flow and nozzle condition.
Step 5
Check probe mount, hotend, wheels/rails, and build-plate seating.

Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Tune carefully

Settings to review

Setting	How to use it
Z offset	Lower gradually; firmware sign conventions vary.
First-layer speed	Keep conservative while calibrating.
Flow	Leave at validated default until height is correct.

Material notes

PLA

Lines should flatten and merge, not remain round.

PETG

Use slightly less squish than a typical PLA profile.

TPU

Slow first-layer movement helps flexible filament stay controlled.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.

CoreXY

Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.

PrusaSlicer

Print, Filament and Printer Settings; inspect the layer preview before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.

Controlled test method

Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.

Save the current profile or photograph every relevant setting.
Choose one suspected cause from the ranked list and change only the matching variable.
Print the smallest useful test with the same material, nozzle, plate, and environment.
Compare the result with the target visual, keep the winning change, and then test the real model.

Standardized proof test

Confirm the repair before repeating the full print

Test modelSingle-layer five-zone test

Setup

Use the final plate, material, mesh and first-layer profile.

Pass condition

Lines join evenly in the centre and corners, with no scraping, gaps or lifting.

If it still fails

One or more zones remain loose, transparent, ridged or detached.

Next controlled action

Recheck plate cleanliness, mesh, Z offset and first-layer flow in that order.

Recheck the visual diagnosis →

If the proof test still fails

Do not repeat the same change—follow the next strongest path

These crawlable, issue-specific links give visitors and search engines a clear relationship between overlapping 3D-printing failures.

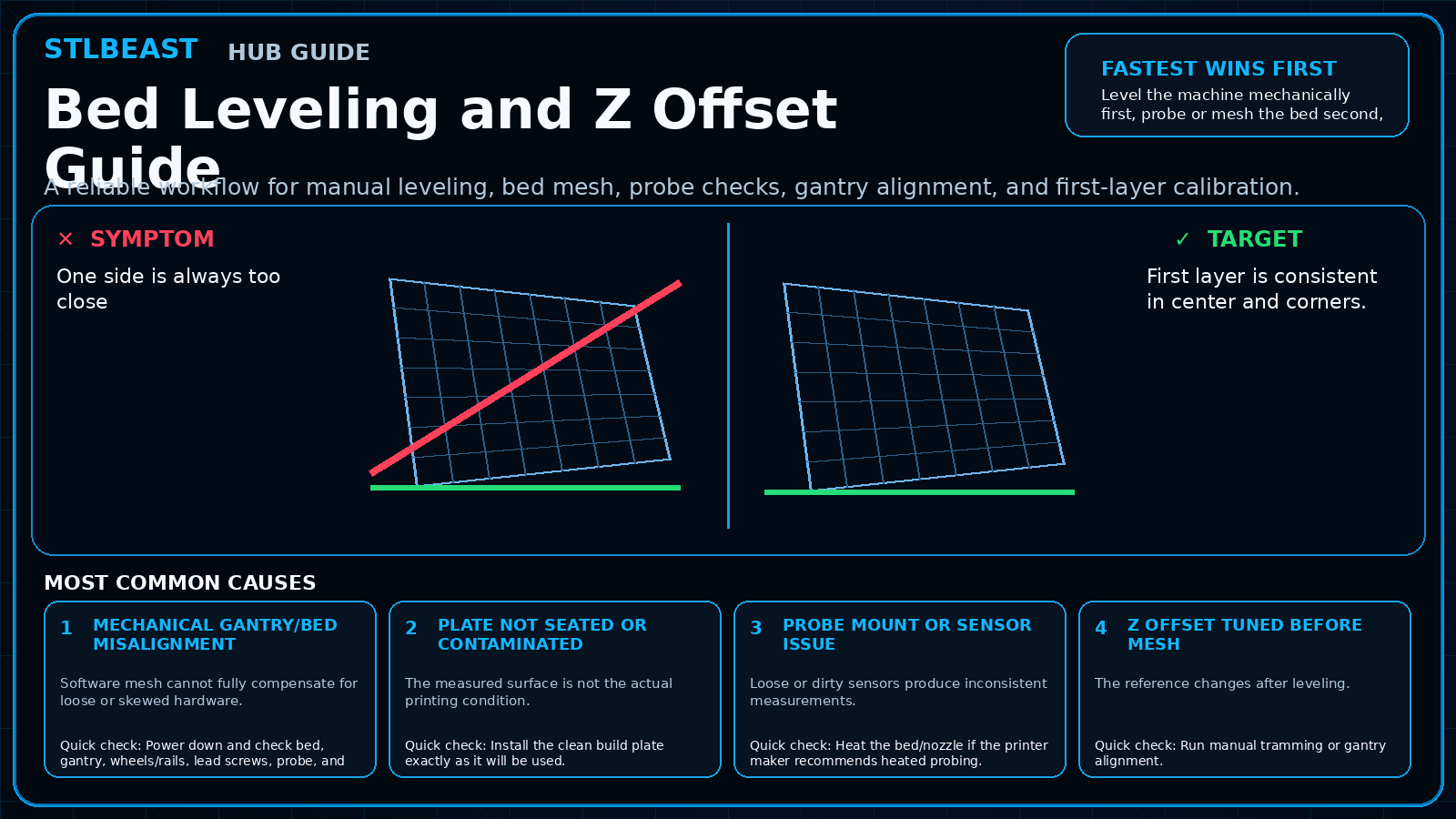

Visual troubleshooting guide for bed leveling and z offset guide

Next path 1Bed Leveling and Z Offset Guide

Use this next when first-layer quality varies across the build plate.

Open this guide →

Visual troubleshooting guide for 3d print not sticking to the bed

Next path 23D Print Not Sticking to the Bed

Open this related First Layer guide when the first repair path does not fully explain the remaining symptom.

Open this guide →

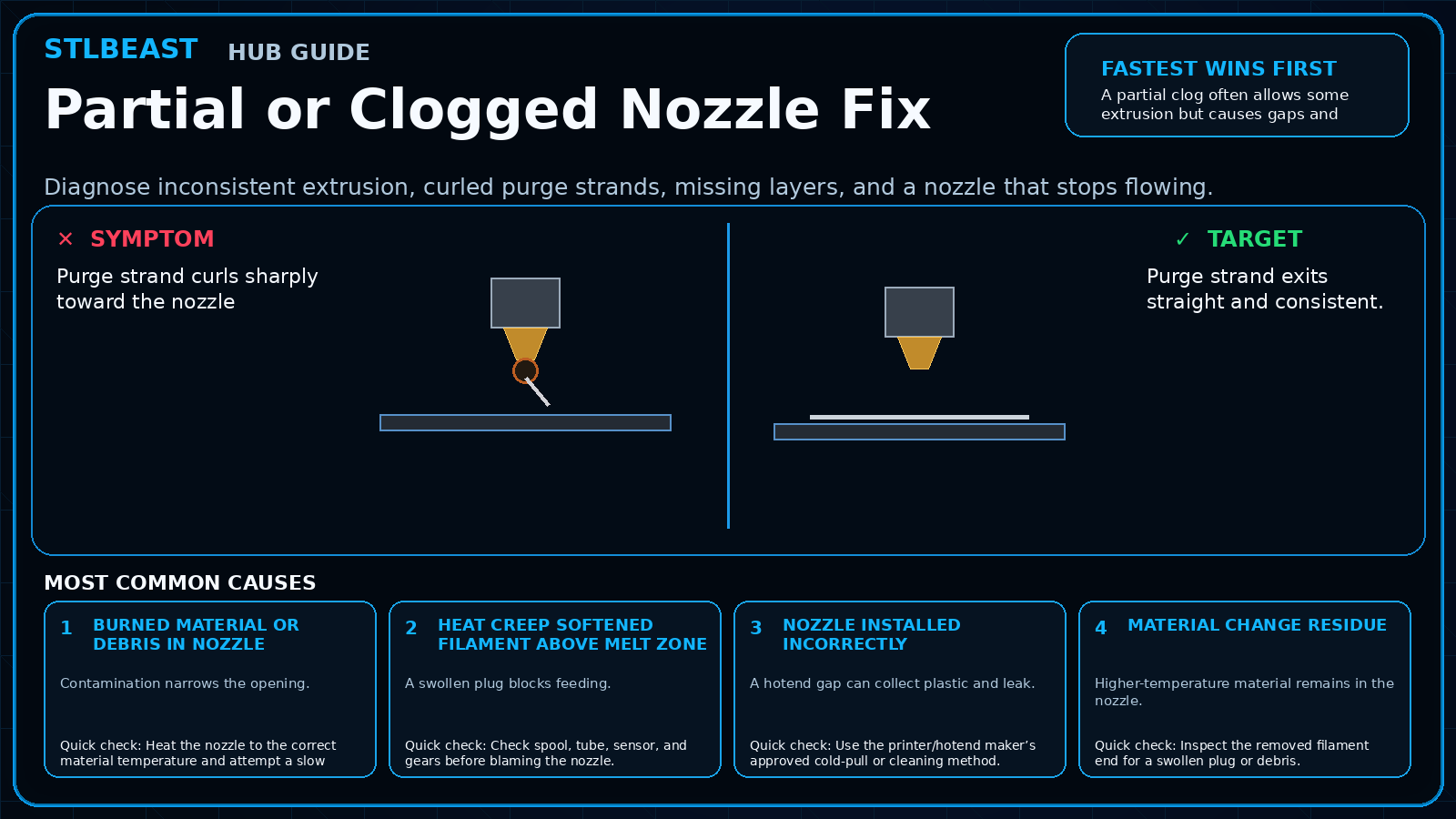

Visual troubleshooting guide for partial or clogged nozzle fix
