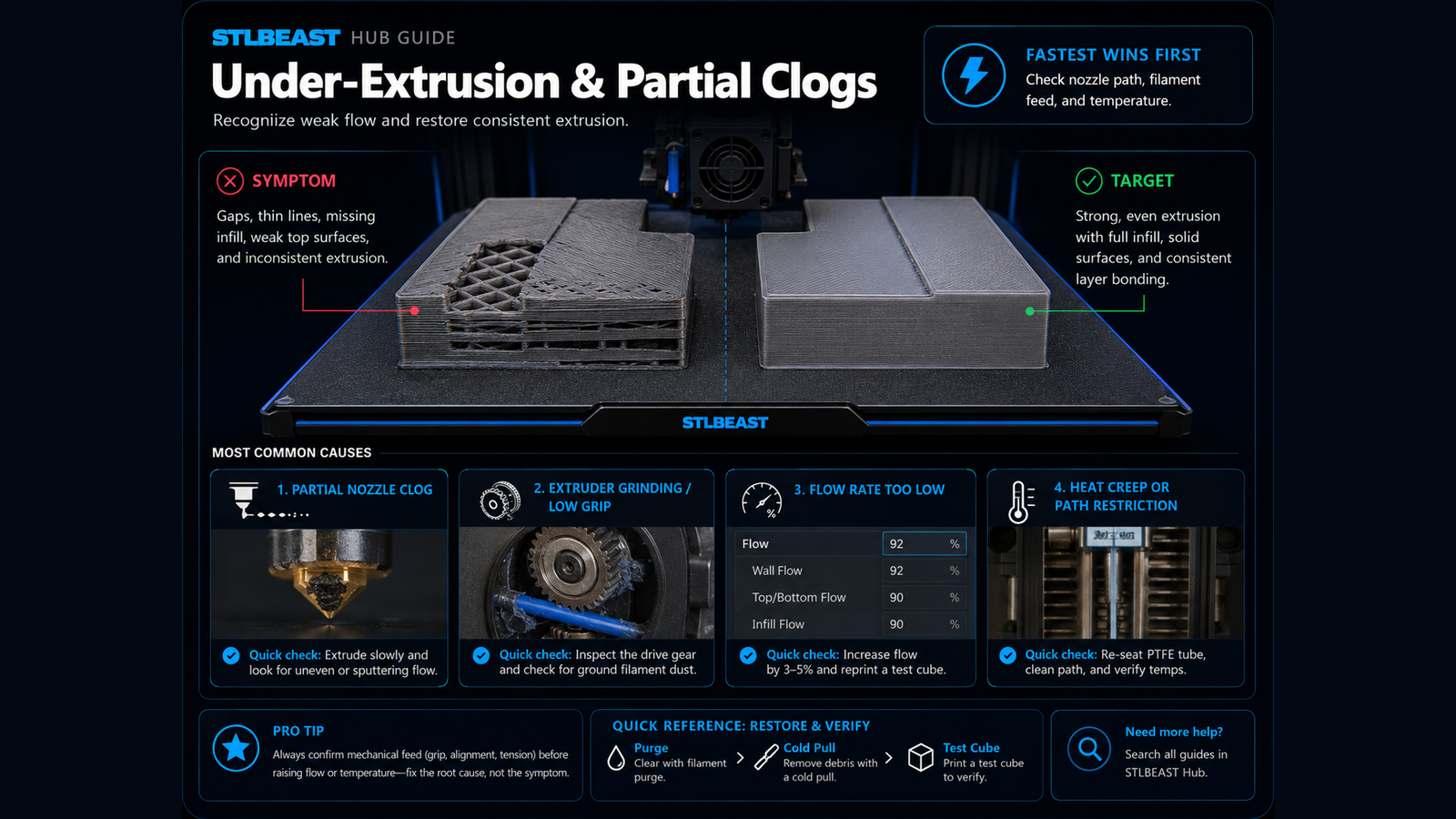

Diagnose inconsistent extrusion, curled purge strands, missing layers, and a nozzle that stops flowing.
Fast answer
A partial clog often allows some extrusion but causes gaps and weak layers. Verify the filament path, purge behavior, and hotend assembly before using aggressive cleaning methods.
Nozzle installed incorrectlyA hotend gap can collect plastic and leak.
Material change residueHigher-temperature material remains in the nozzle.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test, and record the successful setup.
Heat the nozzle to the correct material temperature and attempt a slow manual purge.
Check spool, tube, sensor, and gears before blaming the nozzle.
Use the printer/hotend maker’s approved cold-pull or cleaning method.
Inspect the removed filament end for a swollen plug or debris.
Replace the nozzle if cleaning does not restore consistent flow.
Verify hotend assembly and hot-tightening procedure according to its manufacturer.
Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.
Fast decision path
1If you see evidence of burned material or debris in nozzle
Contamination narrows the opening. Confirm it with the smallest safe test before continuing.
2If you see evidence of heat creep softened filament above melt zone
A swollen plug blocks feeding. Confirm it with the smallest safe test before continuing.
3If you see evidence of nozzle installed incorrectly
A hotend gap can collect plastic and leak. Confirm it with the smallest safe test before continuing.
Settings to review
Setting
How to use it
Purge speed
Use slow controlled extrusion; fast manual extrusion can exceed melt capacity.
Cleaning temperature
Use material/hotend guidance, not an arbitrary high temperature.
Nozzle size
Confirm the slicer and physical nozzle match.
Material notes
Filled/wood/glow filaments
May require larger nozzles and more frequent inspection.
PLA
Heat creep is more likely in a hot enclosure.
Printer context
Bedslinger
Check bed seating, gantry alignment, belts, eccentric wheels, and first-layer consistency across the plate.
CoreXY
Start from the official machine profile; inspect belt balance, input shaping, flow, pressure advance, and chamber conditions.
Delta
Confirm delta calibration, tower movement, belt tension, effector stability, and full-bed mapping.
Resin / SLA
Use resin-specific exposure, lift, support, temperature, wash, cure, and personal-protection procedures.
Where to look in the slicer
OrcaSlicer / Bambu Studio
Process → Quality, Strength, Speed, Support and Filament settings; use calibration tools for temperature, flow and pressure advance.
PrusaSlicer
Print Settings, Filament Settings and Printer Settings; inspect the sliced preview and layer slider before export.
Cura / Creality Print
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Build Plate Adhesion.
Resin slicers
Printer/resin profile, exposure, lift/retract, support contact, raft and hollow/drain settings.
How to verify the fix
Purge strand exits straight and consistent.

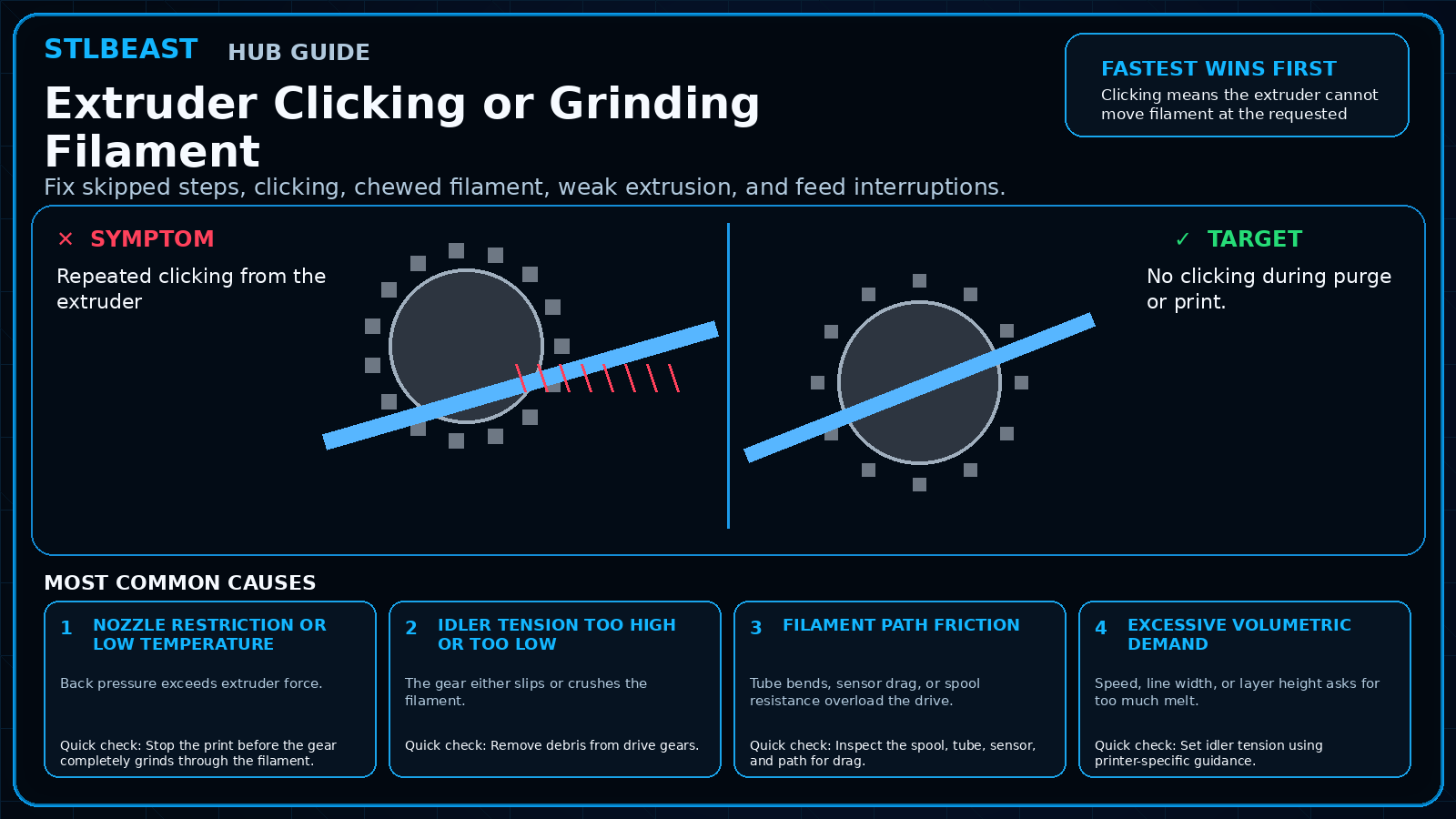

Extruder feeds without clicking.
A thin-wall test has no gaps.
Long print completes without recurring starvation.
Prevent it next time
Use clean filament and capped storage.
Purge appropriately between materials.
Avoid leaving heat-sensitive filament cooking in the hotend.
Use nozzle sizes suitable for filled material.
