Resin Build Plate Leveling and Zero Setup
Clean the plate and screen area, loosen the plate as specified, home against the approved leveling surface, square the plate, tighten evenly, and set zero only.
Clean the plate and screen area, loosen the plate as specified, home against the approved leveling surface, square the plate, tighten evenly, and set zero only when the manufacturer procedure requires it.

See the sequence before you start
Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.
Start fast or open every detail
Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.
Quick Fix mode is active.
Initial gap differs across the build area.
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
Use the smallest useful test, keep the winning change, and record the result.
Make this guide easier to apply to your setup
Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.
Choose any setup details above to emphasize matching notes and produce a safer starting summary.
Know what to do now—and what comes next
Follow one controlled path. Do not stack unrelated changes before the proof test.
- 1Confirm the visual clue
Compare the failed area with the problem and target visuals.
- 2Run the safest first checks
Run the first safe check and change one variable at a time.
- 3Print the proof test
A small representative test no longer shows the original symptom.
- 4Escalate only if needed
Use the next-route guides only when the original symptom remains.
Which description is closest to what you see?
Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.
Initial gap differs across the build area.
Before you change settings
- Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
- Photograph the failure before removing the print so the evidence is not lost.
- Return extreme overrides to a known profile and change one variable at a time.
- Use a small calibration object or representative section before repeating a long print.
Recognize it, check safely, prove the fix
Use this map before changing multiple settings. The detailed procedure and source references follow below.
Fastest safe order
- Remove and filter resin if required by the machine procedure.
- Clean and inspect the build plate, screen protector, and leveling surface.
- Check the plate joint and mounting hardware for play or damage.
- Loosen the designated leveling screws only.
Stop immediately for
- Stay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers.
- Stop immediately for heater errors, smoke, electrical damage, severe binding, uncontrolled motion, or resin exposure.
Proof of success
The original symptom no longer appears during a representative calibration or short test print.

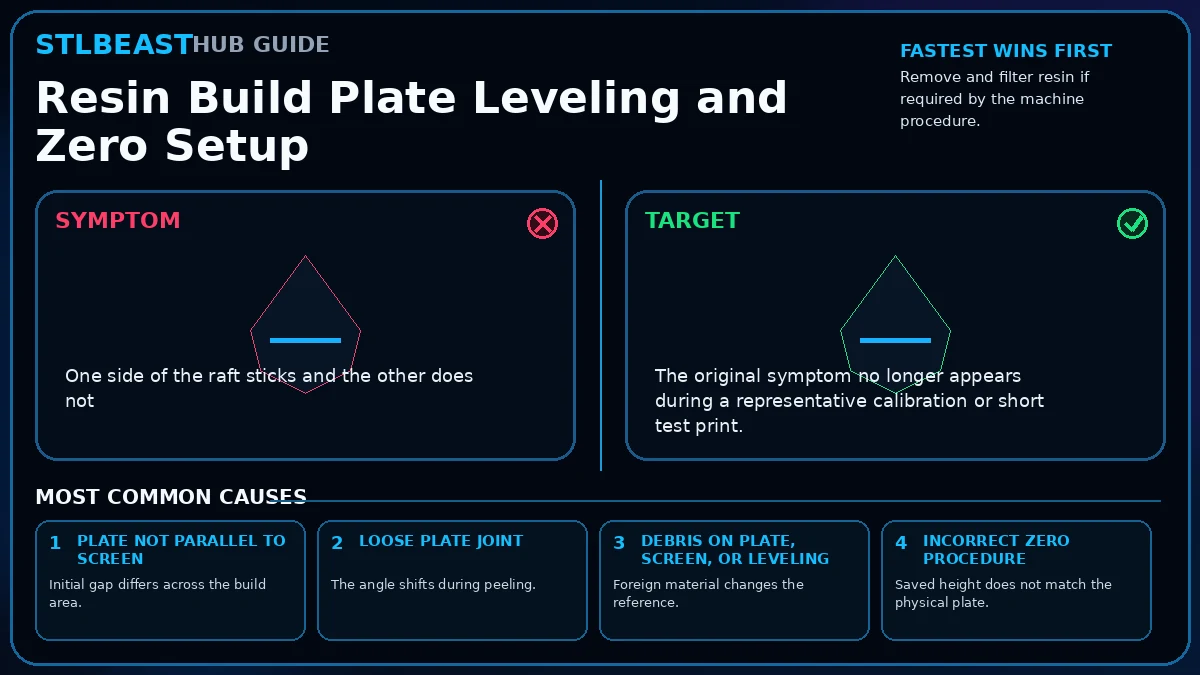

What it looks like
- One side of the raft sticks and the other does not
- First layers are compressed unevenly
- Supports fail consistently on one side
- Plate was removed or struck before failures began
Most likely causes
- Plate not parallel to screenInitial gap differs across the build area.
- Loose plate jointThe angle shifts during peeling.
- Debris on plate, screen, or leveling sheetForeign material changes the reference.
- Incorrect zero procedureSaved height does not match the physical plate.
- Warped or damaged plateThe surface cannot contact evenly.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.
- Step 1Remove and filter resin if required by the machine procedure.
- Step 2Clean and inspect the build plate, screen protector, and leveling surface.
- Step 3Check the plate joint and mounting hardware for play or damage.
- Step 4Loosen the designated leveling screws only.
- Step 5Home the plate using the supplied card, paper, or vat method specified by the manufacturer.
- Step 6Apply even pressure while tightening screws in a cross pattern.
- Step 7Set Z zero only if the machine procedure explicitly requires it.
- Step 8Run a small multi-location validation print before a full plate.
Settings to review
| Setting | How to use it |
|---|---|
| Bottom exposure | Tune only after the plate is level. |
| Bottom-layer count | Use the resin and printer profile as a starting point. |
| Lift speed | Does not correct a tilted plate. |
Material notes
A level plate should produce even rafts across the area.
May need different support and peel settings after leveling.
Tightening order and uniform pressure are especially important.
Printer context
Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.
Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.
Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.
Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.
Where to look in the slicer
Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.
Print, Filament and Printer Settings; inspect the layer preview before export.
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.
Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.
Controlled test method
Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.
- Save the current profile or photograph every relevant setting.
- Choose one suspected cause from the ranked list and change only the matching variable.
- Print the smallest useful test with the same material, nozzle, plate, and environment.
- Compare the result with the target visual, keep the winning change, and then test the real model.
Confirm the repair before repeating the full print
Use the final resin, temperature, exposure, lift and support profile.
The part completes with clean details, attached supports and no layer split.
The part detaches, splits, warps or loses detail.
Inspect leveling, release film, exposure, supports, suction and temperature.
Recheck the visual diagnosis →How to verify the fix
- The original symptom no longer appears during a representative calibration or short test print.
- Measurements, temperatures, motion, feed, or exposure remain stable through the complete test.
- No new warning, collision, leak, electrical smell, unusual heat, or material damage appears.
- The successful change is recorded with printer, material, slicer, nozzle or resin, and date.
