Model Orientation for Cleaner Prints

Choose orientation for strength, supports, surface quality, stability, and fit. Use the ranked checks, controlled repair order, and proof test below to isolate the cause without stacking unrelated changes.

Fast answer

Choose orientation by the most important outcome: layer-direction strength, protected cosmetic surfaces, stable bed contact, minimal support, and accurate mating features.

Visual guide showing the problem, target result and repair path for model orientation for cleaner prints — **See it before changing settings.**A beautiful face is covered in support scars Compare your print with the visual, then follow the repair order below.

Visual repair path

See the sequence before you start

Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.

Target resultCritical face is clean.

Checkpoint 1Identify the primary cosmetic face and keep it upward or vertical when po…Open step →Checkpoint 2Map real loads and orient layers to resist them.Open step →Checkpoint 3Maximize stable bed contact without creating an unmanageable flat stress…Open step →Checkpoint 4Protect mating surfaces from supports and elephant foot.Open step →

Choose how you want to troubleshoot

Start fast or open every detail

Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.

Quick Fix mode is active.

Start hereCosmetic face points downward

Support texture damages the visible surface.

Success should look like

Critical face is clean.
Supports are reachable.

Safe workflowOne change at a time

Use the smallest useful test, keep the winning change, and record the result.

Optional context

Make this guide easier to apply to your setup

Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.

Printer typeExtruder setupMaterialSlicerNozzle size

General guide view

Choose any setup details above to emphasize matching notes and produce a safer starting summary.

Guided repair journey

Know what to do now—and what comes next

Follow one controlled path. Do not stack unrelated changes before the proof test.

Typical first pass 10–30 min

1
Confirm the visual clue
Compare the failed area with the problem and target visuals.
2
Run the safest first checks
Run the first safe check and change one variable at a time.
3
Print the proof test
A small representative test no longer shows the original symptom.
4
Escalate only if needed
Use the next-route guides only when the original symptom remains.

Visual symptom selector

Which description is closest to what you see?

Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.

Best first starting point

Cosmetic face points downward

Support texture damages the visible surface.

Open step 1 →

Before you change settings

Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
Photograph the failure before removing the print so the evidence is not lost.
Return extreme overrides to a known profile and change one variable at a time.
Use a small calibration object or representative section before repeating a long print.

STLBEAST diagnostic map

Recognize it, check safely, prove the fix

Use this map before changing multiple settings. The detailed procedure and source references follow below.

ProblemA beautiful face is covered in support scars

Target resultCritical face is clean.

Fastest safe order

Identify the primary cosmetic face and keep it upward or vertical when possible.
Map real loads and orient layers to resist them.
Maximize stable bed contact without creating an unmanageable flat stress area.
Protect mating surfaces from supports and elephant foot.

Stop immediately for

Change one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Proof of success

Critical face is clean.

What it looks like

A beautiful face is covered in support scars
Tall print wobbles or fails
Functional part snaps along layers
Holes or fits are inaccurate in one orientation

Most likely causes

Cosmetic face points downwardSupport texture damages the visible surface.
Load crosses layer linesPart is weak in service.
Small bed contact or high centre of massPrint becomes unstable.
Long bridges/overhangsUnsupported geometry sags.
Critical holes face poorlyRoundness and support affect fit.

Action plan

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.

Step 1
Identify the primary cosmetic face and keep it upward or vertical when possible.
Step 2
Map real loads and orient layers to resist them.
Step 3
Maximize stable bed contact without creating an unmanageable flat stress area.
Step 4
Protect mating surfaces from supports and elephant foot.
Step 5
Use slicer preview to inspect seams, bridges, and support contact.
Step 6
Split the model if two orientations are better than one compromise.
Step 7
Print a small fit or support test before the full model.

Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Tune carefully

Settings to review

Setting	How to use it
Seam position	Place away from primary view/fit surfaces.
Support painting	Use targeted support.
Brim	Stabilizes tall or narrow orientation.
Adaptive layers	Can improve curves but inspect transitions.

Material notes

FDM

Layer direction strongly affects strength.

Resin

Suction, support marks, and drainage influence orientation.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.

CoreXY

Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.

PrusaSlicer

Print, Filament and Printer Settings; inspect the layer preview before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.

Controlled test method

Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.

Save the current profile or photograph every relevant setting.
Choose one suspected cause from the ranked list and change only the matching variable.
Print the smallest useful test with the same material, nozzle, plate, and environment.
Compare the result with the target visual, keep the winning change, and then test the real model.

Standardized proof test

Confirm the repair before repeating the full print

Test modelSmall representative test print

Setup

Use the same printer, material, slicer and key settings as the failed model.

Pass condition

The original symptom is absent and the target feature is repeatable.

If it still fails

The symptom remains in the same location or stage.

Next controlled action

Return to the ranked causes and test the next single variable.

Recheck the visual diagnosis →

If the proof test still fails

Do not repeat the same change—follow the next strongest path

These crawlable, issue-specific links give visitors and search engines a clear relationship between overlapping 3D-printing failures.

Visual troubleshooting guide for supports hard to remove

Next path 1Supports Hard to Remove

Open this related Supports guide when the first repair path does not fully explain the remaining symptom.

Open this guide →

Visual troubleshooting guide for support scars and rough undersides

Next path 2Support Scars and Rough Undersides

Use this next when supports release but leave damaged surfaces.

Open this guide →

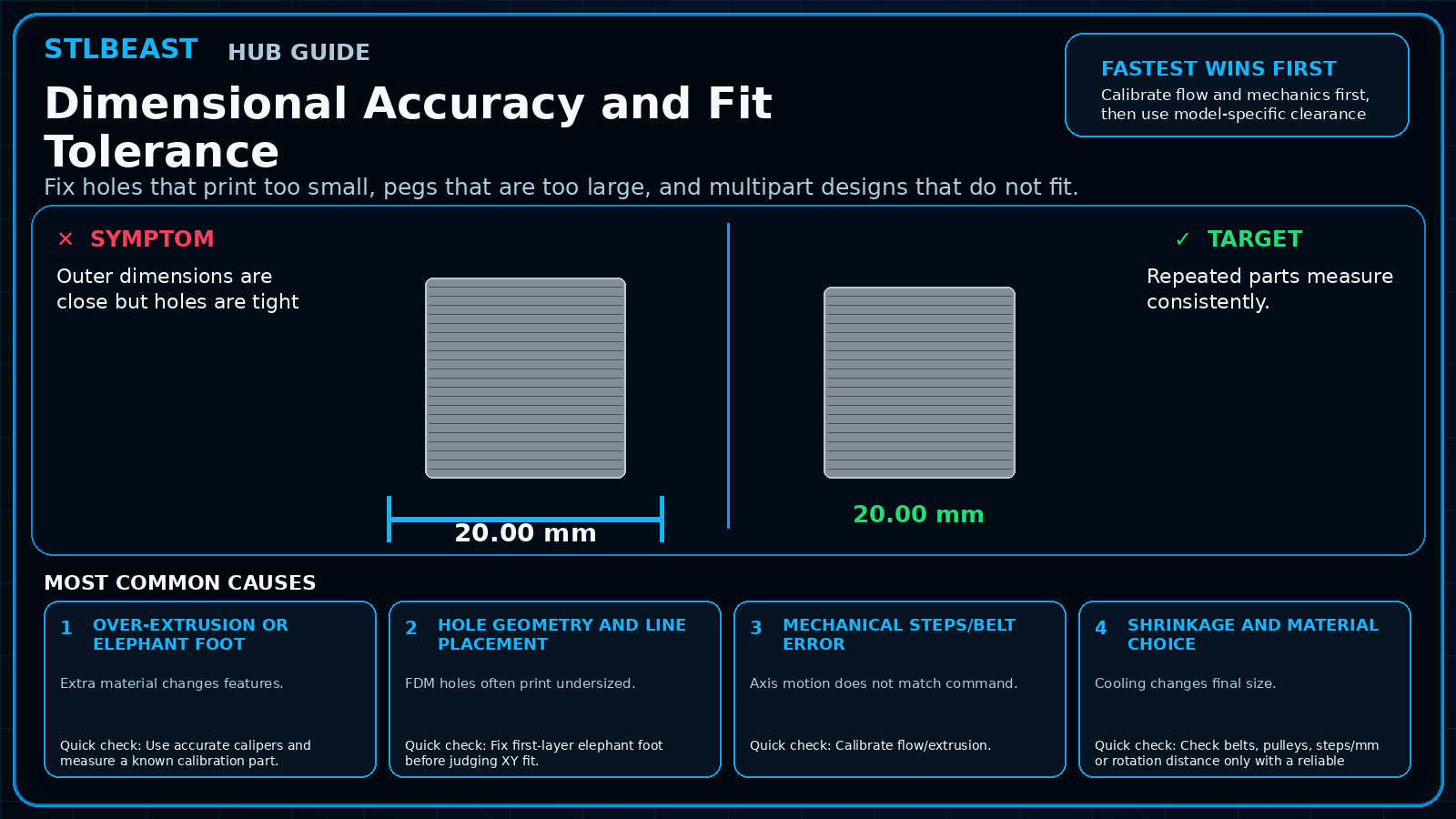

Visual troubleshooting guide for dimensional accuracy and fit tolerance

Next path 3Dimensional Accuracy and Fit Tolerance

Open this related Calibration guide when the first repair path does not fully explain the remaining symptom.

Open this guide →

Proof before you move on

How to verify the fix

Critical face is clean.
Supports are reachable.
Part is stable on the bed.
Load direction and fit are appropriate.

Run the smallest useful test first.

Choose a result after the print so the guide can point you to the correct next action.

Keep the winning setup

Prevent it next time

Document orientation with product files.
Include support-free and supported variants when appropriate.
Design intentional split lines.
Use test coupons for interfaces.
