Ringing and Ghosting Fix

Reduce echo lines after corners, ripples around text, and vibration artifacts on outer walls.

Fast answer

Check mechanical rigidity first, then reduce acceleration/outer-wall speed and tune input shaping only on a mechanically healthy printer.

Start AI Doctor samplePreview printer settingsSearch all fixes

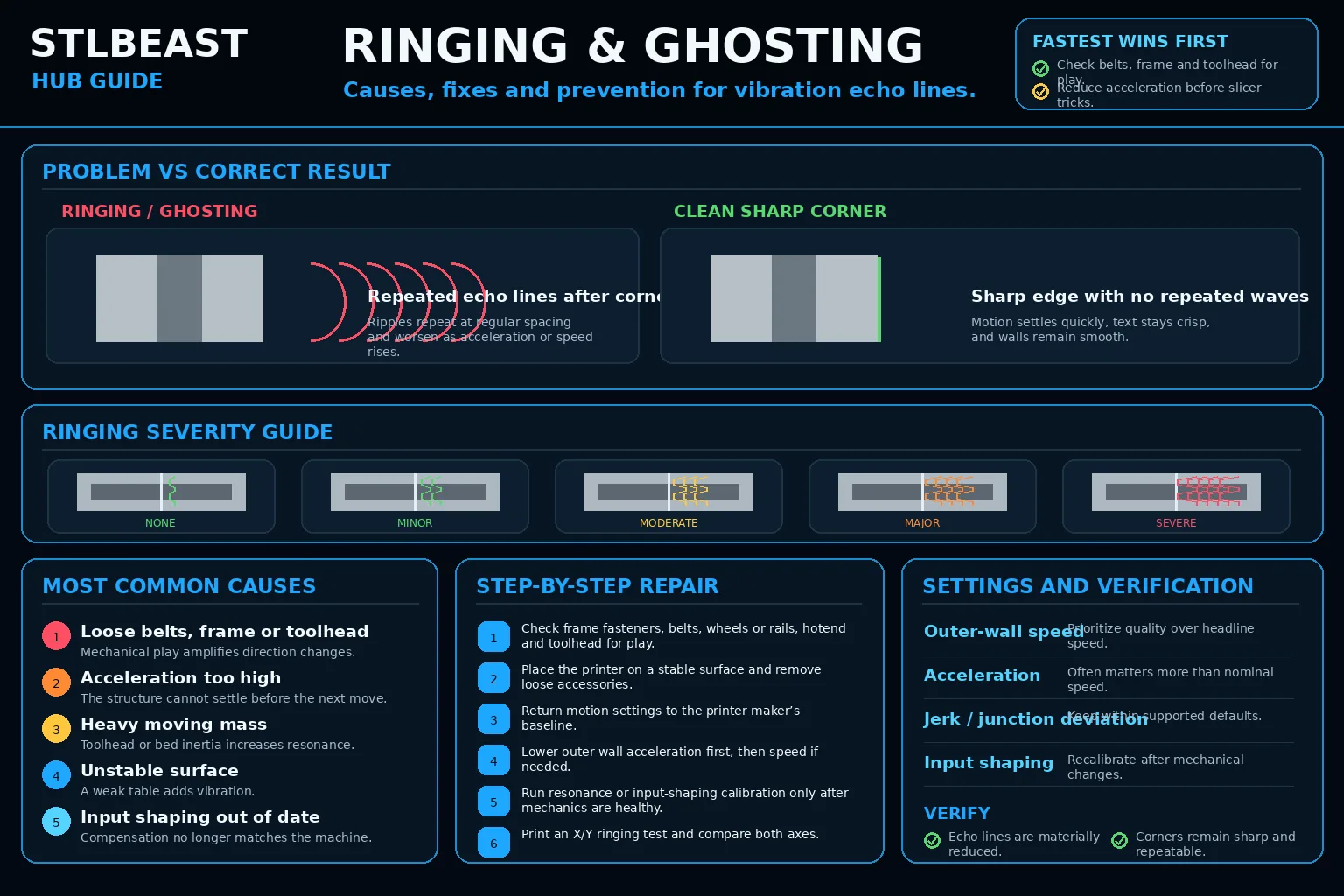

Visual comparison for ringing and ghosting fix
Use the visual comparison first, then follow the ordered checks below.

Before you change settings

  • Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
  • Photograph the failure before removing the print so the evidence is not lost.
  • Return extreme overrides to a known profile and change one variable at a time.
  • Use a small calibration object or representative model section before repeating a long print.

What it looks like

  • Repeated ripples after sharp corners
  • Echoes around embossed text
  • Artifacts increase with speed
  • Different axes show different severity

Most likely causes

  1. Loose frame, belts, wheels, or toolheadMechanical play turns direction changes into oscillation.
  2. Acceleration/jerk too highThe structure cannot settle before the next line.
  3. Heavy or loose spool/toolhead accessoriesAdded moving mass changes resonance.
  4. Input shaping not calibratedCompensation does not match current mechanics.

Repair sequence

Work from top to bottom. Stop when the failure is resolved, verify it with a small test, and record the successful setup.

  1. Check frame fasteners, belts, wheels/rails, hotend, and toolhead for play.
  2. Ensure the printer stands on a stable surface.
  3. Return to manufacturer motion defaults.
  4. Reduce outer-wall speed and acceleration.
  5. Remove loose or unnecessary toolhead accessories.
  6. Run the printer maker’s resonance/input-shaping calibration if supported.
  7. Compare X- and Y-oriented test features.
Safety and accuracyChange one variable at a time and keep every adjustment inside the printer, hotend, build-surface, and filament manufacturer limits.

Fast decision path

1If you see evidence of loose frame, belts, wheels, or toolhead

Mechanical play turns direction changes into oscillation. Confirm it with the smallest safe test before continuing.

2If you see evidence of acceleration/jerk too high

The structure cannot settle before the next line. Confirm it with the smallest safe test before continuing.

3If you see evidence of heavy or loose spool/toolhead accessories

Added moving mass changes resonance. Confirm it with the smallest safe test before continuing.

Settings to review

SettingHow to use it
Outer-wall speedPrioritize quality over maximum speed.
AccelerationLowering often has a larger effect than lowering nominal speed.
Input shapingCalibrate after mechanical changes.

Material notes

Tall prints

More susceptible to frame and model wobble.

Bedslingers

Bed mass and loose bed wheels can dominate Y-axis ringing.

Printer context

Bedslinger

Check bed seating, gantry alignment, belts, eccentric wheels, and first-layer consistency across the plate.

CoreXY

Start from the official machine profile; inspect belt balance, input shaping, flow, pressure advance, and chamber conditions.

Delta

Confirm delta calibration, tower movement, belt tension, effector stability, and full-bed mapping.

Resin / SLA

Use resin-specific exposure, lift, support, temperature, wash, cure, and personal-protection procedures.

Where to look in the slicer

OrcaSlicer / Bambu Studio

Process → Quality, Strength, Speed, Support and Filament settings; use calibration tools for temperature, flow and pressure advance.

PrusaSlicer

Print Settings, Filament Settings and Printer Settings; inspect the sliced preview and layer slider before export.

Cura / Creality Print

Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Build Plate Adhesion.

Resin slicers

Printer/resin profile, exposure, lift/retract, support contact, raft and hollow/drain settings.

How to verify the fix

  • Echo lines are materially reduced.
  • Corners stay sharp without severe slowdown marks.
  • No loose components remain.
  • Input-shaping calibration is repeatable.

Prevent it next time

  • Recheck after moving the printer.
  • Keep toolhead mass controlled.
  • Use stable furniture.
  • Save separate quality and speed profiles.
Printer Settings preview

Useful sample now. Full personalized profile for members.

Every visitor can use the guide and receive a practical sample. Members unlock the complete printer/material profile, exact adjustment order, copy/export controls, saved Profile Vault history, and deeper AI Doctor linkage.

Outer-wall speedPrioritize quality over maximum speed.
AccelerationLowering often has a larger effect than lowering nominal speed.
Try settings sampleCompare membership

Frequently asked questions

Can I fix ringing with lower speed only?

Sometimes, but acceleration and mechanical play are often more important.

Does input shaping fix loose belts?

No. Mechanical problems must be corrected first.

Why is one axis worse?

Different moving mass, belt path, or looseness can create axis-specific resonance.
