TPU Not Feeding Right: Fix Buckling, Jams and Weak Extrusion
Fix TPU that will not load, stops feeding, curls beside the drive gear, clicks, buckles, or produces intermittent under-extrusion.
Unload the TPU and inspect where it bends. Use a clean angled tip, a freely turning spool, the shortest low-friction route, a fully constrained path after the drive gears, moderate idler pressure, slow loading and conservative print speed. If flow is still weak, verify nozzle condition, temperature and filament dryness before increasing force.
See the sequence before you start
Match the visible symptom, work through the four visual checkpoints, and prove the result with a small test.
Start fast or open every detail
Quick Fix keeps the safest first checks and proof steps in view. Full Guide reveals the complete settings, printer context, advanced tests, sources and FAQs.
Quick Fix mode is active.
Soft filament can buckle into any unsupported space instead of entering the guide tube or heatbreak.
- TPU loads without curling beside the gears or stalling in the feed path.
- A manual purge produces a smooth, continuous strand without repeated clicking.
Use the smallest useful test, keep the winning change, and record the result.
Make this guide easier to apply to your setup
Select what you use. The page highlights relevant material, slicer and printer notes without hiding the complete source-backed guide.
Choose any setup details above to emphasize matching notes and produce a safer starting summary.
Know what to do now—and what comes next
Follow one controlled path. Do not stack unrelated changes before the proof test.
- 1Confirm the visual clue
Compare the failed area with the problem and target visuals.
- 2Run the safest first checks
Run the first safe check and change one variable at a time.
- 3Print the proof test
A small representative test no longer shows the original symptom.
- 4Escalate only if needed
Use the next-route guides only when the original symptom remains.
Which description is closest to what you see?
Select the closest match. This does not replace inspection; it moves the most relevant starting point to the front.
Soft filament can buckle into any unsupported space instead of entering the guide tube or heatbreak.
Before you change settings
- Confirm the exact printer, material, nozzle or resin, slicer, and recent hardware changes.
- Check storage humidity, drying history, spool condition and the manufacturer temperature range.
- Return extreme overrides to a known profile and change one variable at a time.
- Use a small calibration object or representative section before repeating a long print.
Recognize it, check safely, prove the fix
Use this map before changing multiple settings. The detailed procedure and source references follow below.
Fastest safe order
- Document the failure and confirm that it matches this guide: Flexible filament bends, coils, or escapes beside the drive gear.
- Return extreme overrides to a known printer, nozzle, material, and slicer profile so the diagnosis starts from a stable baseline.
- Check gap after drive gear. Inspect drive-to-tube gap.
- Check feed speed too high. Slow feed speed.
Stop immediately for
- Stay within the printer, material, resin, hotend, build-surface, electrical, ventilation, and personal-protection limits published by the manufacturers.
- Stop immediately for heater errors, smoke, electrical damage, severe binding, or resin exposure.
Proof of success
The filament path stays fully constrained and feeds slowly without buckling.
What it looks like
- TPU bends, curls or escapes beside the extruder drive gear.
- The printer clicks or grinds while little or no material leaves the nozzle.
- TPU loads partway, then stops in a tube, sensor, feeder or toolhead.
- Extrusion begins normally but becomes thin, intermittent or stops later in the print.
Most likely causes
- Open gap after the drive gearsSoft filament can buckle into any unsupported space instead of entering the guide tube or heatbreak.
- Too much feed resistanceA tight spool, long PTFE route, sharp bend, sensor or multi-material feeder can compress TPU until it folds.
- Speed or volumetric flow too highThe extruder pushes faster than the hotend can melt the flexible filament.
- Idler pressure incorrectToo much pressure flattens TPU; too little lets the gears slip.
- Nozzle restriction or unsuitable temperatureOld material, a partial clog or insufficient heat can raise back-pressure.
- Moist or deformed filamentWet TPU can bubble, ooze and feed inconsistently; TPU left clamped for a long time can take a set.
Repair sequence
Work from top to bottom. Stop when the failure is resolved, verify it with a small test and record the successful setup.
- Step 1Stop the print and unload the TPU. Cut away any chewed, flattened, curled or swollen section, then cut a clean angled loading tip.
- Step 2Confirm the spool turns freely and the filament enters the printer without crossing, rubbing a sharp edge or pulling through an unnecessary long path.
- Step 3Inspect the drive-gear exit. The filament should be supported continuously into the guide tube, heatbreak or toolhead with no open pocket where it can escape.
- Step 4Load slowly. If resistance rises, disconnect the accessible PTFE section and feed through one stage at a time to locate the restriction instead of forcing the filament.
- Step 5Return to the printer or filament maker TPU profile. Reduce print speed and maximum volumetric flow before changing many other settings.
- Step 6Use moderate idler pressure. Reduce it if the TPU is flattened or deeply marked; increase only enough to stop clean slipping.
- Step 7Keep retraction conservative because repeated long reversals can compress, buckle or grind flexible filament.
- Step 8If the path is clear but extrusion remains weak, verify the nozzle is clean and use the TPU maker temperature range. Purge at printing temperature and confirm a steady strand.
- Step 9Check dryness and spool condition. Follow the filament maker drying instructions; do not guess a temperature that could deform the spool or filament.
- Step 10Run a small single-wall or short extrusion test twice. The repair is proven only when TPU feeds continuously without curling, clicking or thin sections.
Settings to review
| Setting | How to use it |
|---|---|
| Print speed | Start with the printer or filament maker TPU profile. Slower speed reduces compression and back-pressure. |
| Maximum volumetric flow | Use a conservative limit; soft TPU often fails when flow demand rises even if nominal speed looks low. |
| Retraction | Keep distance and frequency conservative. Long or repeated retractions can deform flexible filament. |
| Nozzle temperature | Use the exact manufacturer range for the TPU blend, then change in small increments only after the feed path is clear. |
| Idler tension | Use only enough pressure for reliable grip without visibly flattening or deeply scoring the filament. |
| Feed route | Prefer a short, smooth, low-friction path and a spool that unwinds without drag. |
Material notes
Usually easier to feed than softer grades, but it still benefits from a constrained path and slow flow.
Bends more easily and may require printer-specific hardware or a direct external feed path.
Long tubes and bends increase compression. Printer capability varies; follow the manufacturer guidance for flexible filament.
Use only when the printer maker explicitly supports the TPU grade and feed route.
Dry and store TPU according to the filament manufacturer instructions; damp material can produce bubbles, stringing and unstable flow.
Printer context
Check bed seating, gantry alignment, belts, wheels and first-layer consistency across the plate.
Start with the official profile; inspect belt balance, input shaping, flow, pressure advance and chamber conditions.
Confirm delta calibration, tower movement, belt tension, effector stability and full-bed mapping.
Use resin-specific exposure, lift, support, temperature, wash, cure and protective procedures.
Where to look in the slicer
Quality, Strength, Speed, Support and Filament; use built-in calibration for temperature, flow and pressure advance.
Print, Filament and Printer Settings; inspect the layer preview before export.
Quality, Walls, Top/Bottom, Material, Speed, Travel, Cooling, Support and Adhesion.
Printer/resin profile, exposure, lift/retract, support contact, raft, hollowing and drain settings.
Controlled test method
Do not repeat the full print while guessing. Use a small test that reproduces the same feature and record the result.
- Save the current profile or photograph every relevant setting.
- Choose one suspected cause from the ranked list and change only the matching variable.
- Print the smallest useful test with the same material, nozzle, plate, and environment.
- Compare the result with the target visual, keep the winning change, and then test the real model.
Confirm the repair before repeating the full print
Use the same printer, material, slicer and key settings as the failed model.
The original symptom is absent and the target feature is repeatable.
The symptom remains in the same location or stage.
Return to the ranked causes and test the next single variable.
Recheck the visual diagnosis →
Next path 1TPU Flexible Filament Settings GuideOpen this related Material Settings guide when the first repair path does not fully explain the remaining symptom.
Open this guide →
Next path 23D Printer Under-ExtrusionOpen this related Extrusion guide when the first repair path does not fully explain the remaining symptom.
Open this guide →
Next path 3Partial or Clogged Nozzle FixUse this next when flow remains weak, intermittent or uneven after the first checks.
Open this guide →How to verify the fix
- TPU loads without curling beside the gears or stalling in the feed path.
- A manual purge produces a smooth, continuous strand without repeated clicking.
- A short test prints twice with consistent walls and no new under-extrusion.
- The spool turns freely and the successful speed, temperature and feed route are recorded.
Choose a result after the print so the guide can point you to the correct next action.
Prevent it next time
- Unload TPU when it will remain clamped in the extruder for an extended period.
- Keep the spool dry, covered and able to rotate freely during printing.
- Inspect the drive-to-guide gap, PTFE ends and filament sensor path during maintenance.
- Save a known-good TPU profile by hardness, brand, printer and nozzle.
- Use a small proof print after changing the hotend, nozzle, extruder, feed tube or slicer profile.
Useful public sample. Complete personalized profile for members.
Everyone can use the full guide and receive a safe starting sample. Members unlock all machine/material values, adjustment order, saved Profile Vault history and deeper AI Doctor linkage.
Sources and further reading
These references support the troubleshooting sequence. Follow the printer, slicer, filament, resin, and build-surface manufacturer limits for your exact equipment.
Frequently asked questions
Why does TPU curl beside the extruder gear?
There is usually unsupported space after the drive gears, excessive resistance downstream, or too much compression from speed or idler pressure.
Why does TPU load but stop during the print?
Flow demand may rise above what the hotend and feed path can sustain, the spool may begin dragging, or the filament may deform after repeated retractions.
Should I tighten the extruder more?
Not automatically. Excess pressure can flatten TPU and increase friction. Use only enough tension for clean grip.
Can wet TPU cause feeding problems?
Yes. Moisture can create bubbles, oozing, inconsistent extrusion and clogs, but a visible buckle beside the gears still requires a path and resistance check.
Can every AMS or multi-material unit feed TPU?
No. Compatibility depends on the printer, feeder and TPU hardness. Follow the equipment manufacturer guidance for the exact material and route.
Related fixes
Tools matched to this repair path
These links are selected from the page topic instead of showing the same unrelated product everywhere.

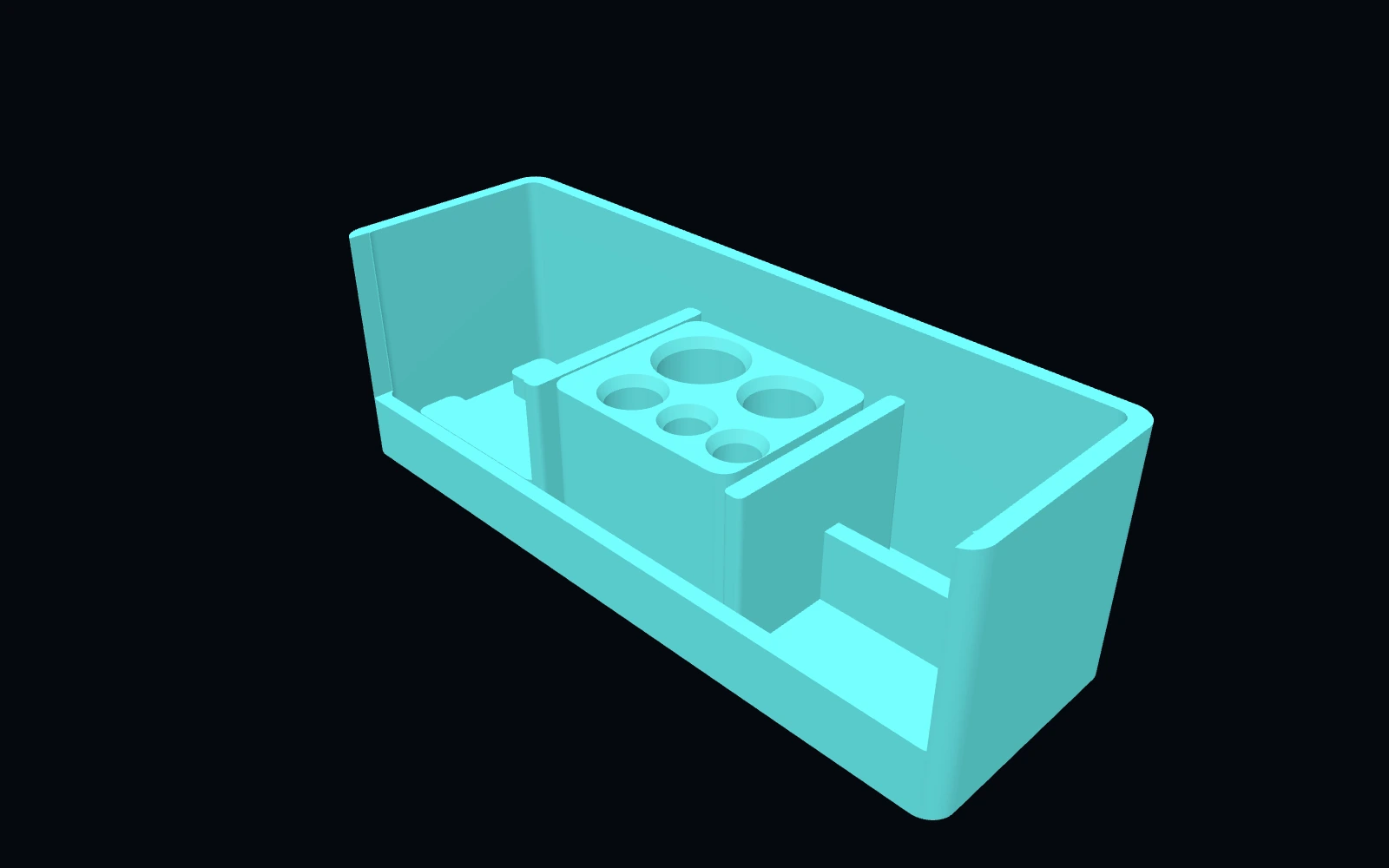

Relevant STLBEAST toolSTLBEAST Filament Path Rescue Station V5A modular service station for clearing filament paths, staging cutters and picks, and organizing feed-system maintenance tools.
View product status · View product →
Relevant STLBEAST toolSTLBEAST AMS & Filament Feed Service Station V2A multi-material feed-system station for rollers, PTFE sections, spool clips, tags, desiccant supplies and feeder hardware.
View product status · View product →

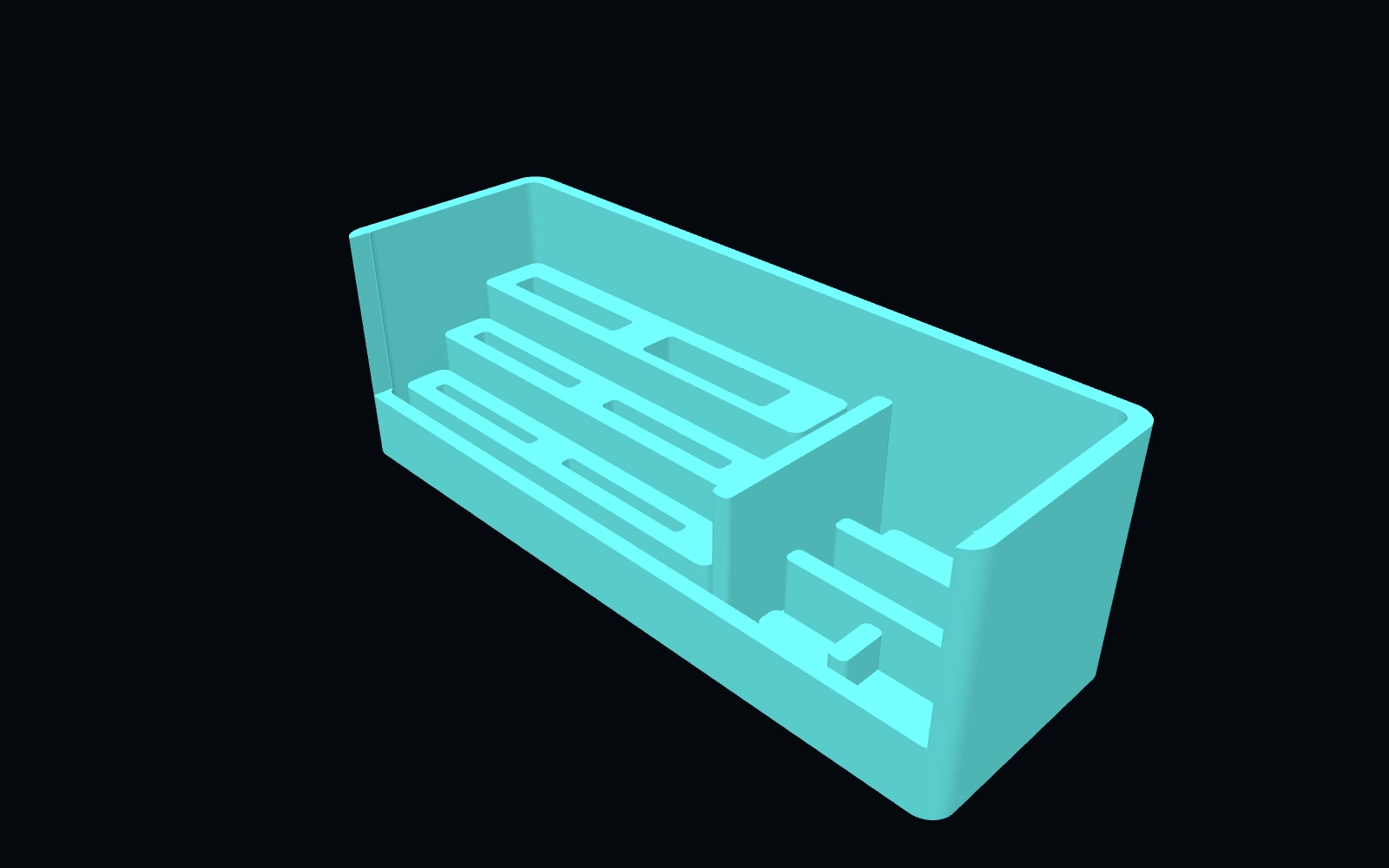

Relevant STLBEAST toolSTLBEAST Filament Swatch & Material ID Station V2A stepped filament-swatch library for material cards, labels, sample strips, spool clips and identification tags.
